Transmission oil cooling for BMW 5 Series E12 525 (1981)

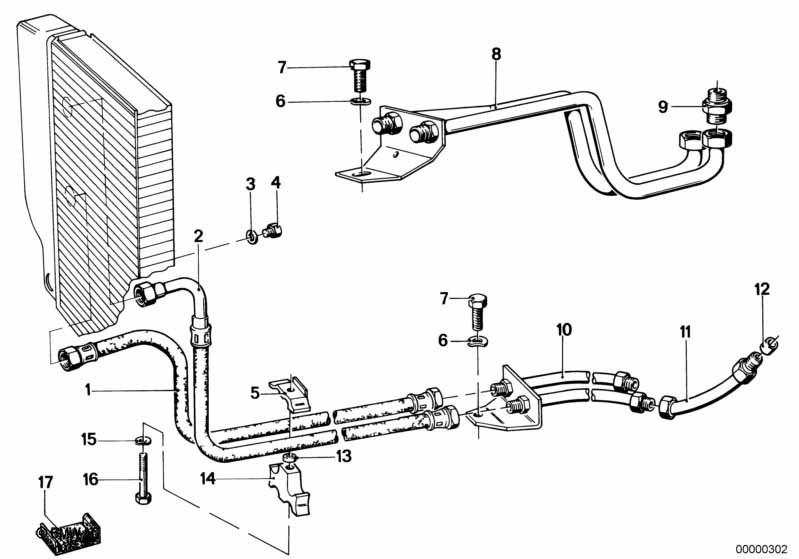

This Transmission oil cooling technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooling pipe | 1 | 17221115747 | $57.75 | Shop at ECS Tuning | |||||
| 02 | Oil cooling pipe | 1 | 17221115763 | $67.47 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A08X11,5-CU | 1 | 07119963042 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Screw plug | 1 | 17111101872 | $2.53 | ENDED | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 17221108417 | $0.97 | Shop at ECS Tuning | |||||
| 06 | Wave washer | B10-ZNS3 | 1 | 07119904463 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M10X18-8.8-ZNS3 | 1 | 07119904033 | $0.65 | Shop at ECS Tuning | ||||
| 08 | Pipe | 1 | 09/1975 | 17221116645 | $19.25 | Shop at ECS Tuning | ||||
| 09 | Threaded pipe joint | M14-M18X1,5 | 2 | 09/1975 | 17221116672 | $9.12 | Shop at ECS Tuning | |||
| 13 | Washer | 1 | 11410752144 | ENDED | Shop at ECS Tuning | |||||
| 14 | Bracket oil pipe | 1 | 17221108416 | $1.70 | Shop at ECS Tuning | |||||
| 15 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 17 | Base | 2 | 17111100001 | $3.86 | ENDED | Shop at ECS Tuning |
