Cooling system-thermostat/water hoses for BMW 5 Series E12 525 (1976)

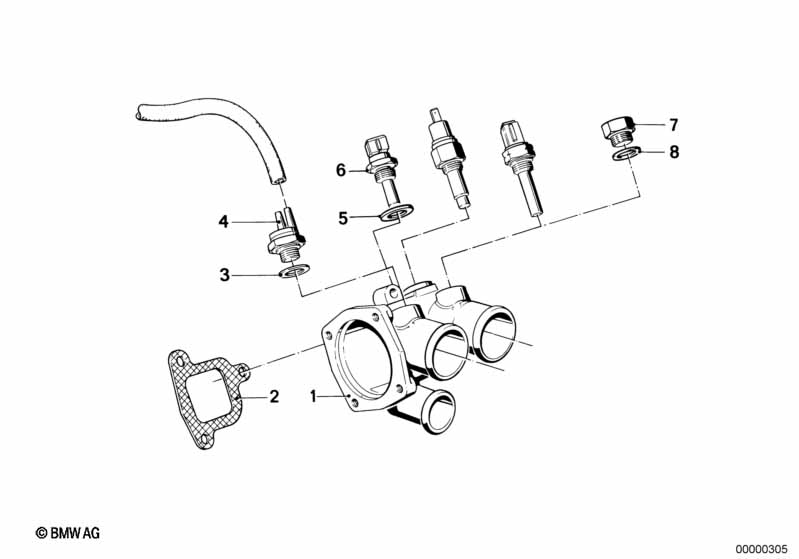

This Cooling system-thermostat/water hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thermostat housing | 1 | 11531710959 | $58.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 60X3,5 | 1 | 11531265084 | $2.10 | Shop at ECS Tuning | ||||
| -- | Thermostat | 80CEL | 1 | 11531710953 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11531722690 | $6.02 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Thermovalve | 20/13CEL | 1 | 08/1976 | 11741264536 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Screw plug | AM12X1,5 | X | 07119909703 | Shop at ECS Tuning | |||||
| 07 | Screw plug | AM14X1,5 | X | 07119909704 | Shop at ECS Tuning | |||||
| 08 | Gasket ring | A12X15-CU | X | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A14X18-CU | X | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 525 Cooling system-thermostat/water hoses?
- This technical diagram illustrates the Cooling system-thermostat/water hoses within the Engine group for the 5 Series E12 525 produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Thermostat housing (Part #11531710959).
- Which models use the hardware listed in this Cooling system-thermostat/water hoses?
- The hardware and components featured in the Cooling system-thermostat/water hoses are specific to the 5 Series E12 525 produced during 1976. These technical specifications ensure that parts like the Thermostat housing (11531710959) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-thermostat/water hoses assembly?
- Each item in the Cooling system-thermostat/water hoses corresponds to the numbered list below the illustration. For the 5 Series E12 525, you can identify the Thermostat housing by locating its position on the schematic, which then links to the official BMW part number 11531710959 for the Engine section.
