Expansion tank for BMW 5 Series E12 535i (1981)

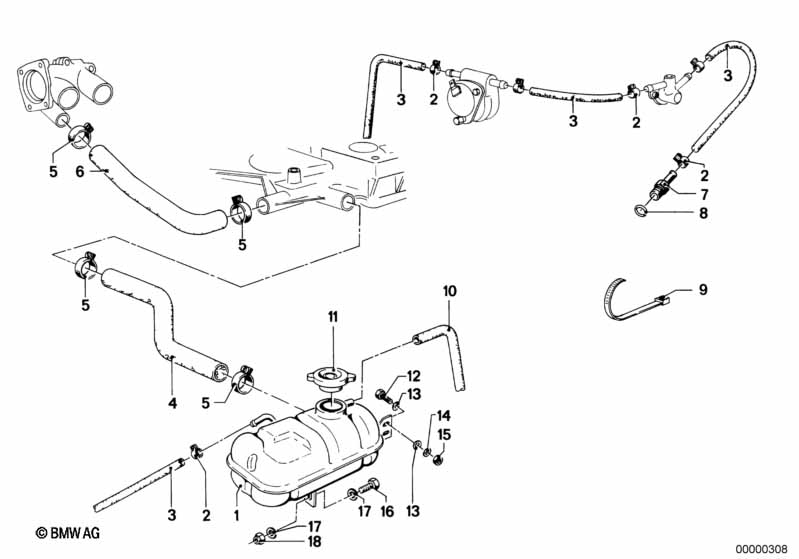

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 08/1976 | 17111114790 | $110.70 | ENDED | Shop at ECS Tuning | |||
| 01 | Expansion tank | 1 | 08/1976 | 17111114743 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L12-15 | 4 | 08/1976 | 07129952104 | $1.18 | Shop at ECS Tuning | |||
| 03 | Fuel hose | 8X13MM | X | 08/1976 | 16121180409 | $20.43 | Shop at ECS Tuning | |||
| 05 | Hose clamp | L28-33 | 4 | 08/1976 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 07 | Connector | M10 | 1 | 08/1976 | 11111250587 | $10.25 | ENDED | Shop at ECS Tuning | ||
| 08 | Gasket ring | A10X13.5-AL | 1 | 08/1976 | 07119963073 | $0.11 | Shop at ECS Tuning | |||
| 10 | Hose | 7X10MM | 1 | 08/1976 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | ||
| 10 | Hose | 650MM | 1 | 08/1976 | 17121113142 | $9.95 | Shop at ECS Tuning | |||
| 11 | Radiator cap | D=60 MM 1,0 BAR | 1 | 08/1976 | 17111100848 | $17.06 | Shop at ECS Tuning | |||
| 12 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 08/1976 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 13 | Washer | A6,4-200HV-ZNS3 | 2 | 08/1976 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 14 | Spring washer Black | B6-ZN | 2 | 08/1976 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 15 | Hex nut | M6-8-ZNNIV SI | 2 | 08/1976 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 16 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 08/1976 | 07119904040 | Shop at ECS Tuning | ||||
| 17 | Washer | 8,4X24X2-ZNS3 | 2 | 08/1976 | 07119904164 | $0.40 | Shop at ECS Tuning | |||
| 18 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 08/1976 | 07129906196 | $1.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 535i Expansion tank?
- This technical diagram illustrates the Expansion tank within the Engine group for the 5 Series E12 535i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Expansion tank (Part #17111114790).
- Which models use the hardware listed in this Expansion tank?
- The hardware and components featured in the Expansion tank are specific to the 5 Series E12 535i produced during 1981. These technical specifications ensure that parts like the Expansion tank (17111114790) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Expansion tank assembly?
- Each item in the Expansion tank corresponds to the numbered list below the illustration. For the 5 Series E12 535i, you can identify the Expansion tank by locating its position on the schematic, which then links to the official BMW part number 17111114790 for the Engine section.
