Cooling system-thermostat/water hoses for BMW 7 Series E23 728i (1982)

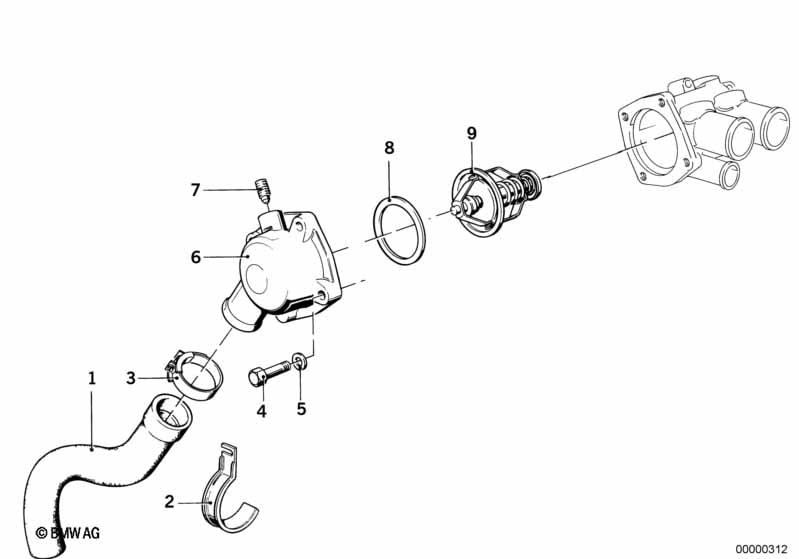

This Cooling system-thermostat/water hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 11531289617 | $34.88 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X35-8.8-ZNS3 | 1 | 07119902998 | $0.38 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X80 | 1 | 07119912363 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X25 | 3 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 4 | 05/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 05 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover | 1 | 11531714861 | $80.96 | Shop at ECS Tuning | |||||
| ASSEMBLY WITHOUT GASKET |
||||||||||
| 07 | Vent screw | M8 | 1 | 11531275881 | $3.47 | Shop at ECS Tuning | ||||
| 08 | O-ring | 1 | 09/1985 | 11531250399 | $1.98 | Shop at ECS Tuning | ||||
| only applies to | ||||||||||
| -- | Thermostat housing | X | 09/1985 | 11531250352 | ENDED | Shop at ECS Tuning | ||||
| -- | Thermostat | 80 GRAD | X | 09/1985 | 11531254065 | $62.16 | ENDED | Shop at ECS Tuning | ||
| -- | Thermostat housing | X | 09/1985 | 11531272870 | ENDED | Shop at ECS Tuning | ||||
| 09 | Thermostat | 80 CEL | 1 | 09/1985 | 11531251041 | $29.57 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | O-ring | 60X3,5 | 1 | 09/1985 | 11531265084 | $2.10 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Thermostat housing | X | 09/1985 | 11531250352 | ENDED | Shop at ECS Tuning | ||||
| -- | Thermostat housing | X | 09/1985 | 11531272870 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
