Expansion tank for BMW 7 Series E23 732i (1982)

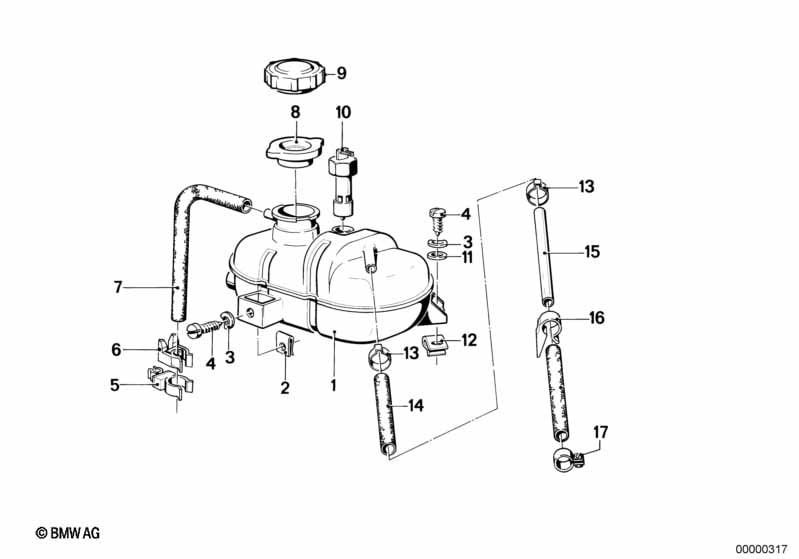

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 732i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 05/1984 | 17111177644 | ENDED | Shop at ECS Tuning | ||||
| 01 | Expansion tank | 1 | 05/1984 | 17111178251 | $78.80 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Levelling switch radiator | L=109MM | 1 | 05/1984 | 61311375715 | $27.84 | Shop at ECS Tuning | |||
| -- | Radiator cap | D=60 MM 1,0 BAR | 1 | 05/1984 | 17111100848 | $17.06 | Shop at ECS Tuning | |||
| 02 | Body nut | ST6,3-10 | 1 | 07129901672 | $0.35 | Shop at ECS Tuning | ||||
| 03 | Spring washer Black | B6-ZN | 2 | 06/1986 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 03 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Fillister head self-tapping screw | ST6,3X19-Z1 | 2 | 07119906794 | $0.62 | Shop at ECS Tuning | ||||
| 05 | Hose clamp | 1 | 17111119526 | $1.00 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bracket breather pipe | X | 16131177583 | $1.08 | Shop at ECS Tuning | |||||
| 07 | Hose | 7X10MM | 1 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 08 | Radiator cap | D=60 MM 1,0 BAR | 1 | 05/1984 | 17111100848 | $17.06 | Shop at ECS Tuning | |||
| 08 | Radiator cap | D=60 MM 1,0 BAR | 1 | 05/1984 | 17111100848 | $17.06 | Shop at ECS Tuning | |||
| 08 | Radiator cap | D=60 MM 1,0 BAR | 1 | 05/1984 | 17111100848 | $17.06 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Levelling switch radiator | L=109MM | 1 | 05/1984 | 61311375715 | $27.84 | Shop at ECS Tuning | |||
| -- | Expansion tank | 1 | 05/1984 | 17111178251 | $78.80 | Shop at ECS Tuning | ||||
| 09 | Radiator cap | 1,2BAR | 1 | 17114379047 | $20.84 | Shop at ECS Tuning | ||||
| 10 | Levelling switch radiator | L=95MM | 1 | 05/1984 | 61311361248 | $25.58 | ENDED | Shop at ECS Tuning | ||
| only applies to | ||||||||||
| 10 | Levelling switch radiator | L=109MM | 1 | 05/1984 | 61311375715 | $27.84 | Shop at ECS Tuning | |||
| only applies to | ||||||||||
| -- | Expansion tank | X | 05/1984 | 17111177644 | ENDED | Shop at ECS Tuning | ||||
| -- | Expansion tank | X | 05/1984 | 17111178251 | $78.80 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | Body nut | ST6,3-1-ZNS3 | 1 | 07129904231 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L=9-12 | 3 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
| 14 | Vent hose | 8X13MM | X | 17121712736 | $17.72 | Shop at ECS Tuning | ||||
| 15 | Pipe | 1 | 17111120554 | $9.27 | ENDED | Shop at ECS Tuning | ||||
| 16 | Holder | D=10MM | X | 61131362825 | $0.62 | Shop at ECS Tuning | ||||
| 17 | Hose clamp | L=9-12 | 1 | 07129952102 | $1.18 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
