Cooling system-thermostat/water hoses for BMW 7 Series E23 735i (1985)

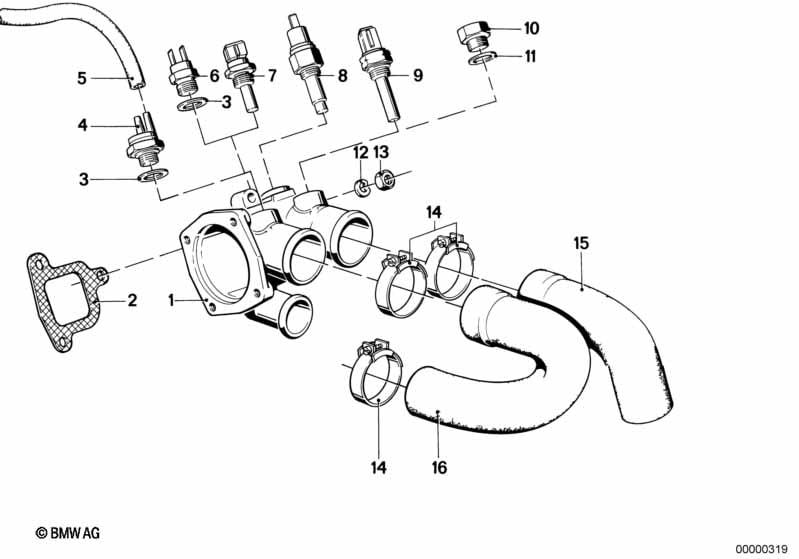

This Cooling system-thermostat/water hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thermostat housing | 1 | 11531710959 | $58.65 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | O-ring | 60X3,5 | 1 | 11531265084 | $2.10 | Shop at ECS Tuning | ||||
| -- | Thermostat | 80CEL | 1 | 11531710953 | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11531722690 | $6.02 | Shop at ECS Tuning | |||||
| 03 | Gasket ring | A14X18-AL | 3 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Temperature switch | 115CEL | 1 | 12631268428 | $38.96 | ENDED | Shop at ECS Tuning | |||
| 07 | Temperature sensor, water | 1 | 13621709967 | Shop at ECS Tuning | ||||||
| 08 | Temperature sending unit/warning contact | 120CEL | 1 | 62161360870 | $101.09 | Shop at ECS Tuning | ||||
| 10 | Screw plug | AM12X1,5 | X | 07119909703 | Shop at ECS Tuning | |||||
| 10 | Screw plug | AM14X1,5 | X | 07119909704 | Shop at ECS Tuning | |||||
| 11 | Gasket ring | A12X15-CU | X | 07119963129 | $0.11 | Shop at ECS Tuning | ||||
| 11 | Gasket ring | A14X18-CU | X | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Wave washer | 8,4X15-ZNS3 | 3 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 13 | Hex nut wiht flange | M8 | 3 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 14 | Hose clamp | L=47-54MM | 4 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 15 | Hose | 1 | 11533905723 | Shop at ECS Tuning | ||||||
| 16 | Water hose | 1 | 11531266459 | $18.87 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
