Engine oil cooling for BMW 7 Series E23 735i (1985)

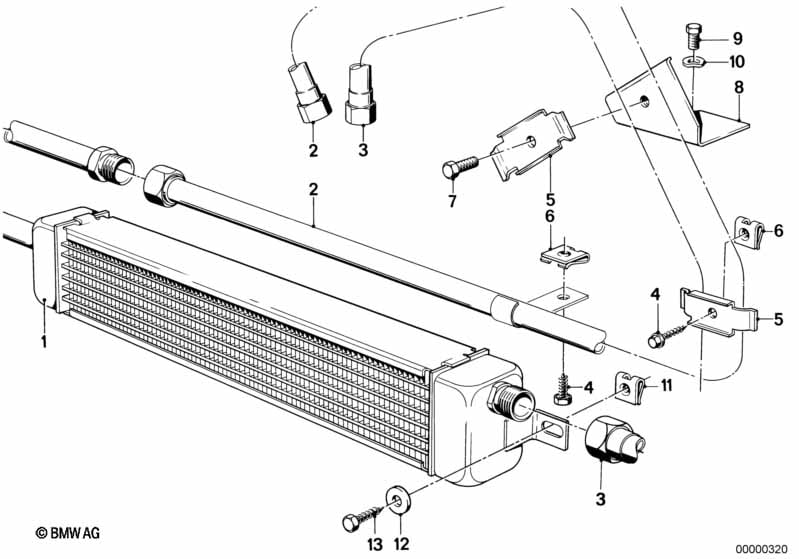

This Engine oil cooling technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil cooler | 1 | 17111150789 | $384.41 | Shop at ECS Tuning | |||||
| 02 | Oil cooling pipe outlet | 1 | 04/1983 | 17221177454 | $86.18 | ENDED | Shop at ECS Tuning | |||
| 03 | Oil cooling pipe inlet | 1 | 04/1983 | 17221177453 | $135.04 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex head screw | ST6,3X32-C-Z1 | 2 | 07119916975 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Clamp | 2 | 17111150859 | $2.53 | Shop at ECS Tuning | |||||
| 06 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M6X25 | 1 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 08 | Support | 1 | 17111150849 | $4.89 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Spring washer Black | B6-ZN | 1 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Body nut | ST8,0-1 | 2 | 07129925749 | $0.41 | Shop at ECS Tuning | ||||
| 12 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 13 | Hex head screw | ST8X22-C | 2 | 07119916879 | $0.77 | Shop at ECS Tuning |
