Radiator/frame for BMW 7 Series E23 733i (1979)

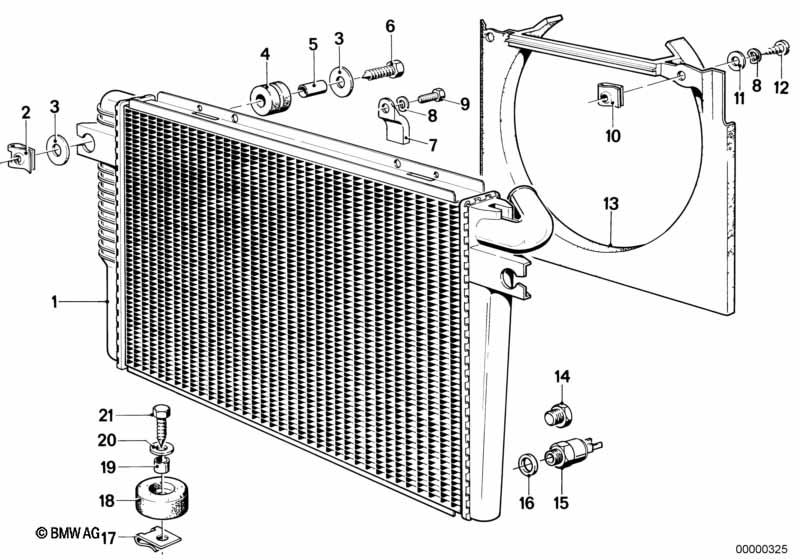

This Radiator/frame technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Radiator with transmission oil cooler | 1 | 17111153064 | $689.59 | Shop at ECS Tuning | |||||
| 01 | Radiator | 1 | 17112902902 | Shop at ECS Tuning | ||||||
| 02 | Body nut | ST6,3-1-ZNS3 | 2 | 07129904231 | Shop at ECS Tuning | |||||
| 03 | Washer | 7X29X2 | 4 | 51436440260 | $0.39 | Shop at ECS Tuning | ||||
| 04 | Rubber grommet | 2 | 17111117442 | $1.27 | Shop at ECS Tuning | |||||
| 05 | Spacer sleeve | ZNS3 | 2 | 07146977328 | $1.21 | Shop at ECS Tuning | ||||
| 06 | Hex head screw | ST6,3X38-C | 2 | 07119916886 | $0.96 | Shop at ECS Tuning | ||||
| 07 | Bow | 1 | 01/1981 | 11531251145 | $1.51 | ENDED | Shop at ECS Tuning | |||
| 08 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X18 | 1 | 23317545769 | $0.67 | Shop at ECS Tuning | ||||
| 10 | Body nut | ST4,2-1-ZNS3 | 2 | 07129904220 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Washer | 4-200 HV-ZNS3 | 2 | 07119904207 | Shop at ECS Tuning | |||||
| 12 | Fillister head self-tapping screw | ST4,2X13 | 2 | 07119906748 | $0.18 | Shop at ECS Tuning | ||||
| 13 | Fan shroud | 1 | 17111177833 | $35.11 | Shop at ECS Tuning | |||||
| 14 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 15 | Temperature switch | 91CEL | 1 | 61311364272 | $29.04 | SI 120787777 | Shop at ECS Tuning | |||
| 15 | Temperature switch | 99CEL | 1 | 61311364273 | $29.04 | Shop at ECS Tuning | ||||
| 16 | Gasket ring | A14X20-CUAS | 1 | 07119963244 | $0.41 | Shop at ECS Tuning | ||||
| 17 | Body nut | ST6,3-2-ZNS3 | 2 | 07129904232 | $0.16 | Shop at ECS Tuning | ||||
| 18 | Rubber Mounting | 2 | 17111117807 | $10.32 | ENDED | Shop at ECS Tuning | ||||
| 19 | Spacer sleeve | 2 | 17111118624 | $0.50 | ENDED | Shop at ECS Tuning | ||||
| 21 | Hex head screw | ST6,3X22-C-Z1 | 2 | 07119916969 | $0.29 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- SI = Service Information
