Expansion tank for BMW 5 Series E12 530i (1978)

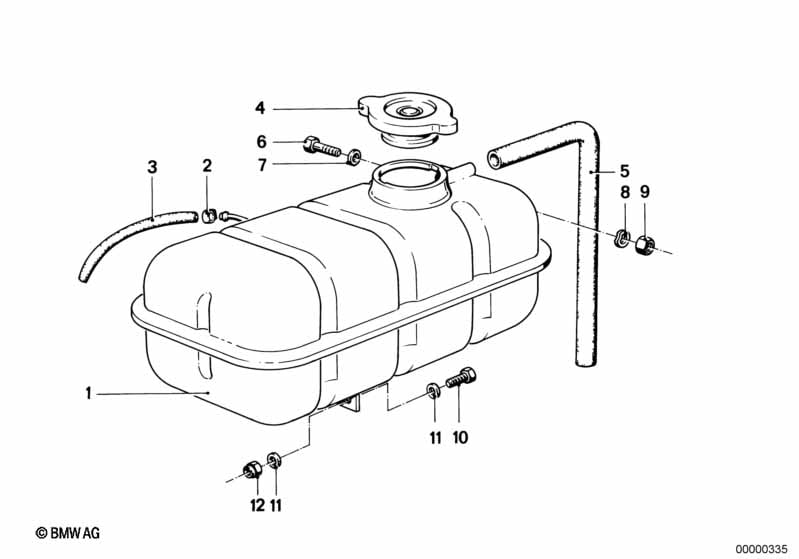

This Expansion tank technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Expansion tank | 1 | 17111114790 | $110.70 | ENDED | Shop at ECS Tuning | ||||
| 01 | Expansion tank | 1 | 17111114743 | Shop at ECS Tuning | ||||||
| 02 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 03 | Vent hose | 8X13MM | X | 17121712736 | $17.72 | Shop at ECS Tuning | ||||
| 04 | Radiator cap | D=60 MM 1,0 BAR | 1 | 17111100848 | $17.06 | Shop at ECS Tuning | ||||
| 05 | Hose | 7X10MM | 1 | 17111150232 | $3.89 | +core | Shop at ECS Tuning | |||
| 05 | Hose | 650MM | 1 | 17121113142 | $9.95 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X28-8.8-ZNS | 2 | 07119913021 | $2.30 | Shop at ECS Tuning | ||||
| 07 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M8X22-8.8-ZNS3 | 1 | 07119904040 | Shop at ECS Tuning | |||||
| 11 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M8-8-ZNNI SI | 1 | 07129906196 | $1.60 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
