Cooling system-thermostat housing for BMW 5 Series E28 525e (1987)

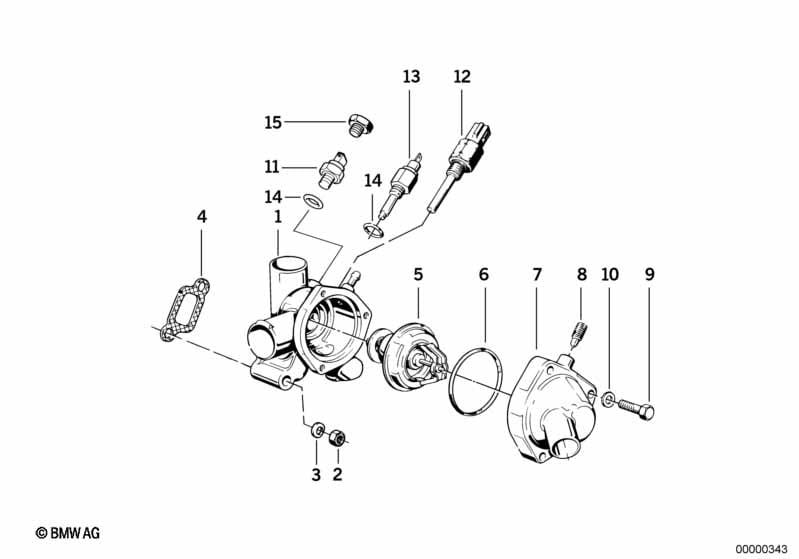

This Cooling system-thermostat housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 525e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thermostat housing | 1 | 09/1987 | 11531730470 | $58.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Thermostat housing | 1 | 09/1987 | 11531730470 | $58.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 01 | Thermostat housing | 1 | 09/1987 | 11531730470 | $58.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Screw plug | AM14X1,5 | 2 | 09/1987 | 07119909704 | Shop at ECS Tuning | ||||
| -- | Screw plug | AM14X1,5 | 2 | 09/1987 | 07119909704 | Shop at ECS Tuning | ||||
| -- | Screw plug | AM14X1,5 | 2 | 09/1987 | 07119909704 | Shop at ECS Tuning | ||||
| -- | Gasket ring | A14X18-AL | 2 | 09/1987 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| -- | Gasket ring | A14X18-AL | 2 | 09/1987 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| -- | Gasket ring | A14X18-AL | 2 | 09/1987 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 02 | Hex nut wiht flange | M8 | 2 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 03 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11531722692 | $3.62 | Shop at ECS Tuning | |||||
| 05 | Thermostat | 80CEL | 1 | 09/1985 | 11531710953 | Shop at ECS Tuning | ||||
| 06 | O-ring | 60X3,5 | 1 | 11531265084 | $2.10 | Shop at ECS Tuning | ||||
| 07 | Cover | 1 | 11531265059 | $20.68 | Shop at ECS Tuning | |||||
| 08 | Vent screw | M8 | 1 | 11531275881 | $3.47 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X25 | 3 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Spring washer Black | B6-ZN | 3 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 11 | Temperature switch | 1 | 12631279716 | ENDED | Shop at ECS Tuning | |||||
| 11 | Temperature sensor, water | 1 | 13621709967 | Shop at ECS Tuning | ||||||
| 11 | Temperature sensor | M12X1,5 | 1 | 12/1986 | 13621709966 | $37.35 | ENDED | Shop at ECS Tuning | ||
| 12 | Temperature-time switch | 1 | 13621362599 | $72.54 | Shop at ECS Tuning | |||||
| 13 | Engine coolant temp sensor | 1 | 09/1985 | 12621710511 | Shop at ECS Tuning | |||||
| 14 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | A14X18-AL | 3 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 15 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 525e Cooling system-thermostat housing?
- This technical diagram illustrates the Cooling system-thermostat housing within the Engine group for the 5 Series E28 525e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Thermostat housing (Part #11531730470).
- Which models use the hardware listed in this Cooling system-thermostat housing?
- The hardware and components featured in the Cooling system-thermostat housing are specific to the 5 Series E28 525e produced during 1987. These technical specifications ensure that parts like the Thermostat housing (11531730470) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-thermostat housing assembly?
- Each item in the Cooling system-thermostat housing corresponds to the numbered list below the illustration. For the 5 Series E28 525e, you can identify the Thermostat housing by locating its position on the schematic, which then links to the official BMW part number 11531730470 for the Engine section.
