Cooling System Water Hoses for BMW 5 Series E28 535i (1987)

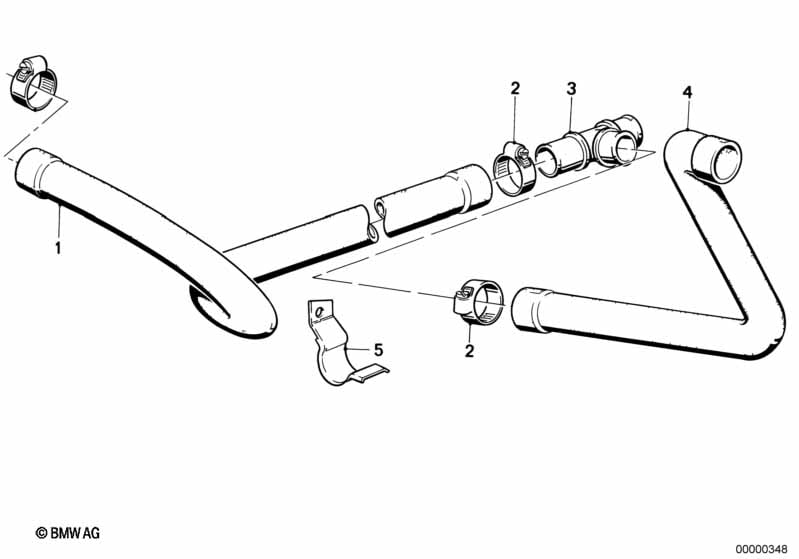

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hose | 1 | 11531274210 | $21.63 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L28-33 | 4 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 03 | Distribution piece | 1 | 11531272866 | $4.54 | Shop at ECS Tuning | |||||
| 04 | Hose | 1 | 11531272835 | $27.50 | Shop at ECS Tuning | |||||
| 05 | Bow | 1 | 11531277934 | $3.15 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 535i Cooling System Water Hoses?
- This technical diagram illustrates the Cooling System Water Hoses within the Engine group for the 5 Series E28 535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Hose (Part #11531274210).
- Which models use the hardware listed in this Cooling System Water Hoses?
- The hardware and components featured in the Cooling System Water Hoses are specific to the 5 Series E28 535i produced during 1987. These technical specifications ensure that parts like the Hose (11531274210) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling System Water Hoses assembly?
- Each item in the Cooling System Water Hoses corresponds to the numbered list below the illustration. For the 5 Series E28 535i, you can identify the Hose by locating its position on the schematic, which then links to the official BMW part number 11531274210 for the Engine section.
