Cooling System Water Hoses for BMW 5 Series E28 524td (1987)

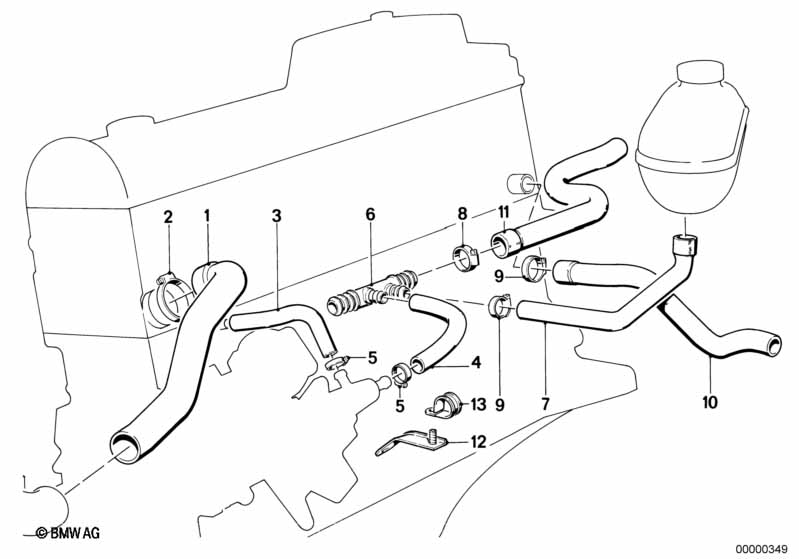

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 524td. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 11531284096 | $25.24 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Water hose | 1 | 11531285919 | $14.41 | Shop at ECS Tuning | |||||
| 04 | Return hose | 1 | 11531287282 | $16.22 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L18-24 | 4 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 06 | Connection piece | 1 | 11531285859 | $3.42 | Shop at ECS Tuning | |||||
| For vehicles with National version Austria |
V013A=Yes |
|||||||||
| 06 | Connection piece | 1 | 11532241781 | ENDED | Shop at ECS Tuning | |||||
| 07 | Water hose | 1 | 11531285856 | $14.75 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 09 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 10 | Water hose inlet 1 | 1 | 64211372457 | $23.58 | Shop at ECS Tuning | |||||
| 11 | Return hose | 1 | 64211373181 | $10.04 | ENDED | Shop at ECS Tuning | ||||
| 12 | Holder | 1 | 11531275934 | $1.69 | ENDED | Shop at ECS Tuning | ||||
| 13 | Pipe clamp | D=26/6,4 | 1 | 11531279400 | $1.61 | Shop at ECS Tuning | ||||
