Cooling System Water Hoses for BMW 7 Series E23 745i (1987)

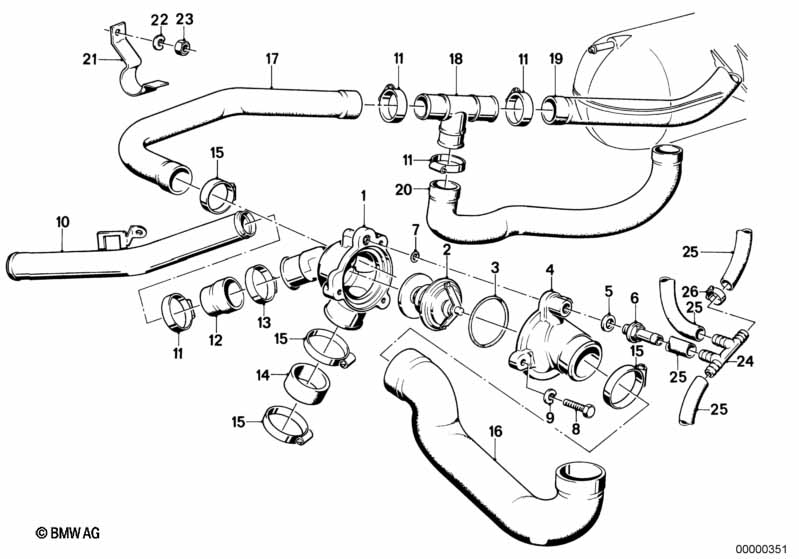

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 745i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thermostat housing | 1 | 11531307236 | $212.29 | ENDED | Shop at ECS Tuning | ||||
| 02 | Thermostat | 80 CEL | 1 | 11531307738 | ENDED | Shop at ECS Tuning | ||||
| 03 | O-ring | 65X3,55 | 1 | 07119906322 | $2.67 | Shop at ECS Tuning | ||||
| 04 | Cover | 1 | 11531307238 | $192.30 | Shop at ECS Tuning | |||||
| 05 | Gasket ring | A10X13.5-AL | 1 | 07119963073 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Connector | 1 | 11121307249 | $6.45 | Shop at ECS Tuning | |||||
| 07 | O-ring | 10X2 | 1 | 07119906328 | $0.13 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X20-8.8-ZNS | 3 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 09 | Washer | 5.3-140 HV-ZNS | 3 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Wave washer | B6-ZNS3 | 3 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 10 | Water connector | 1 | 11531306873 | $57.92 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L28-33 | 3 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 12 | Hose | 1 | 11531306829 | $21.82 | Shop at ECS Tuning | |||||
| 13 | Hose clamp | L32-38 | 2 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 14 | Hose | 1 | 11531306828 | $9.12 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L=47-54MM | 5 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 16 | Water hose | 1 | 11531307232 | ENDED | Shop at ECS Tuning | |||||
| 17 | Return pipe | 1 | 11531306850 | $21.63 | Shop at ECS Tuning | |||||
| 18 | Distribution piece | 1 | 11531272866 | $4.54 | Shop at ECS Tuning | |||||
| 19 | Return hose | 1 | 64212902821 | ENDED | Shop at ECS Tuning | |||||
| 20 | Water hose | 1 | 11531307233 | ENDED | Shop at ECS Tuning | |||||
| 21 | Bow | 2 | 11531277934 | $3.15 | ENDED | Shop at ECS Tuning | ||||
| 22 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 23 | Hex nut | M8-8-ZNNIV SI | 2 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||

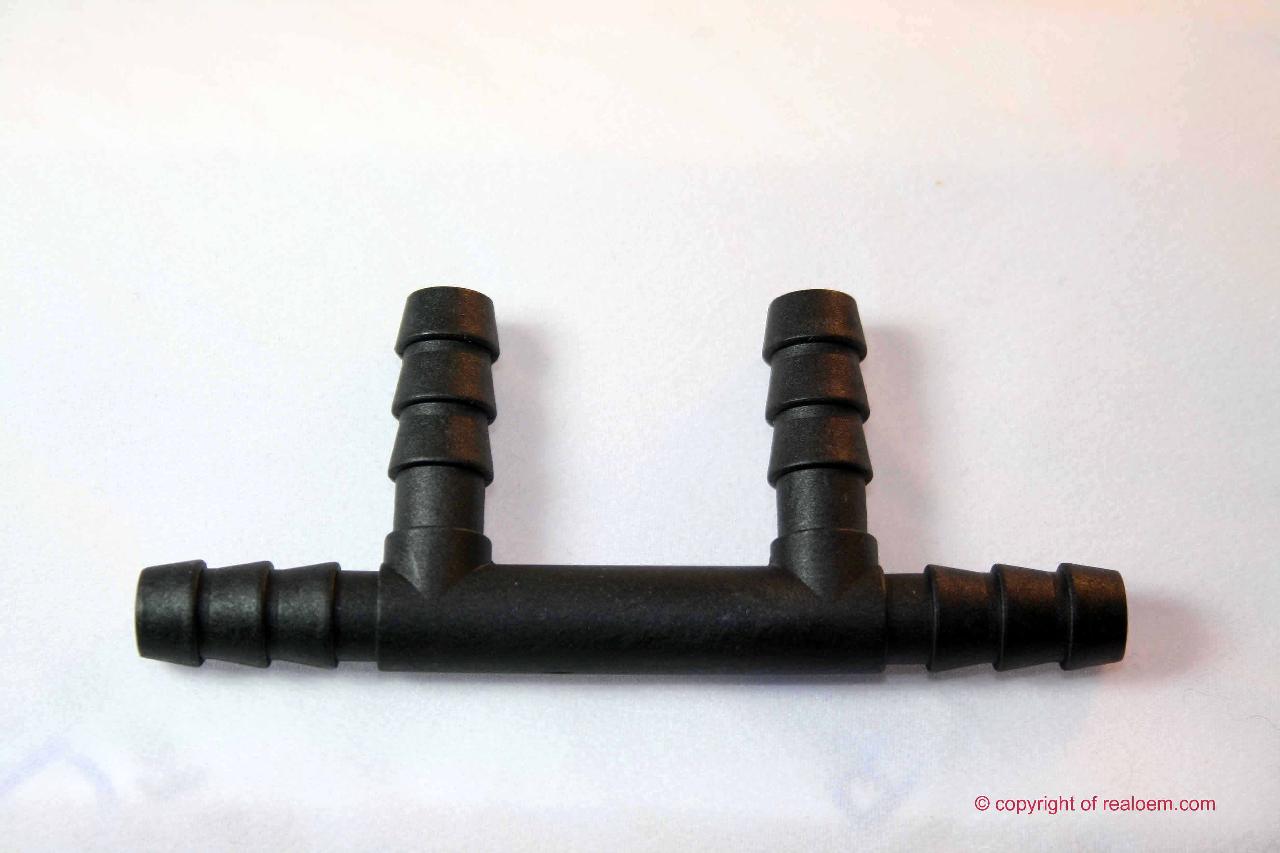

| 24 | Distribution piece | 1 | 11531307324 | $8.69 | Shop at ECS Tuning | |||||
| 25 | Vent hose | 8X13MM | X | 17121712736 | $17.72 | Shop at ECS Tuning | ||||
| 26 | Hose clamp | L12-15 | 8 | 07129952104 | $1.18 | Shop at ECS Tuning |
