Cooling System Water Hoses for BMW 5 Series E28 520i (1982)

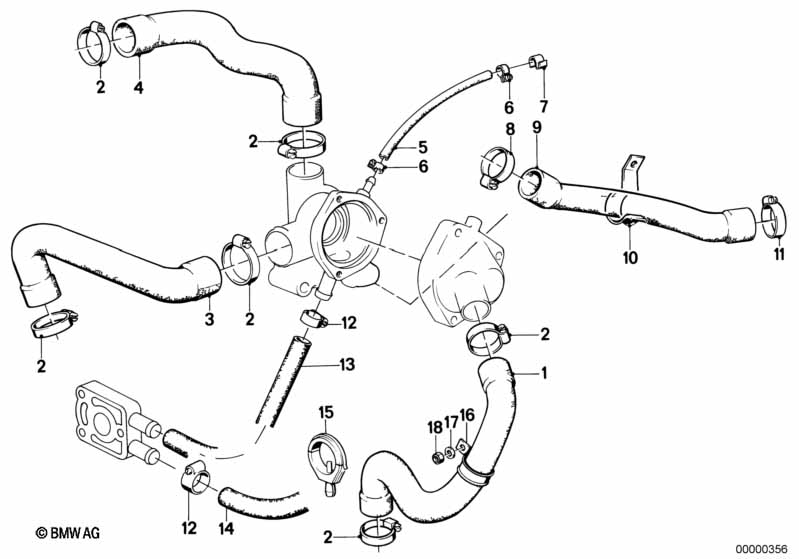

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

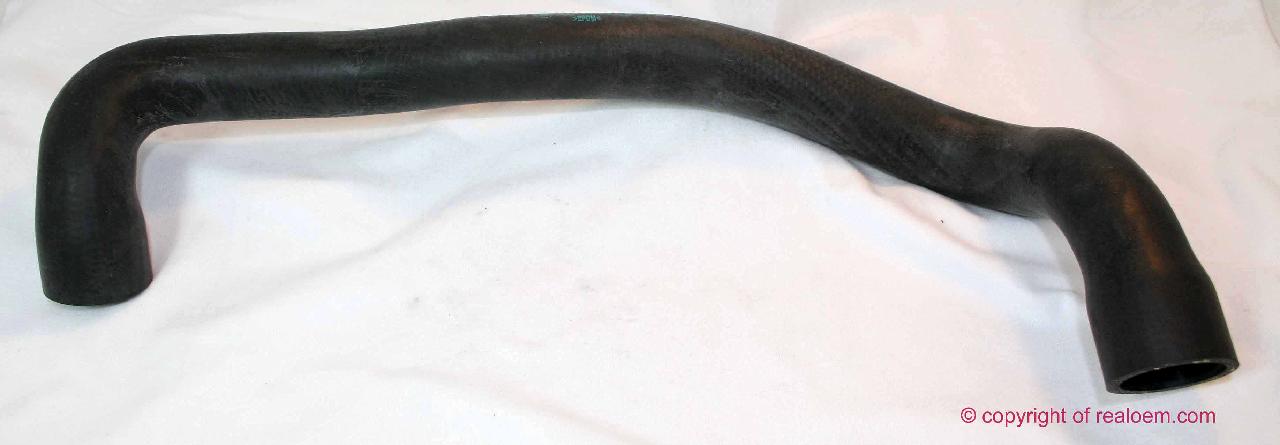

| 01 | Water hose | 1 | 09/1984 | 11531278925 | $34.57 | Shop at ECS Tuning | ||||
| 01 | Water hose | 1 | 11531278045 | $29.48 | Shop at ECS Tuning | |||||
| For vehicles with Tropical version |
=Yes |
|||||||||
| 01 | Water hose | 1 | 11531278045 | $29.48 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning |
=Yes |
|||||||||
| 01 | Water hose | 1 | 11531278925 | $34.57 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning and Tropical version |
=Yes =Yes |
|||||||||
| 01 | Water hose | 1 | 11531706513 | $28.75 | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L42-48 | 6 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 03 | Water hose | 1 | 11531265448 | $25.80 | Shop at ECS Tuning | |||||
| 03 | Water hose | 1 | 11531287651 | $37.73 | Shop at ECS Tuning | |||||
| 04 | Water hose | 1 | 09/1984 | 11531276385 | $19.84 | Shop at ECS Tuning | ||||
| 04 | Water hose | 1 | 11531287682 | $22.13 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Water hose | X | 11531276385 | $19.84 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO AIR CONDITION | ||||||||||
| -- | Water hose | X | 11531287668 | $16.63 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO AIR CONDITION | ||||||||||
| For vehicles with Tropical version |
=Yes |
|||||||||
| 04 | Water hose | 1 | 11531272853 | $18.97 | Shop at ECS Tuning | |||||
| For vehicles with Air conditioning and Tropical version |
=Yes =Yes |
|||||||||
| 04 | Water hose | 1 | 11531706514 | $17.73 | Shop at ECS Tuning | |||||
| 05 | Vent hose | 8X13MM | X | 17121712736 | $17.72 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L12-15 | 2 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 07 | Clamp | 1 | 11731270839 | ENDED | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 09 | Return hose | 1 | 09/1982 | 11531284653 | $22.13 | Shop at ECS Tuning | ||||
| 10 | Bow | 1 | 11531277934 | $3.15 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 13 | Water hose | 1 | 13541716521 | $23.77 | Shop at ECS Tuning | |||||
| 14 | Water hose | 1 | 13541716522 | $21.85 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
