Cooling system pipe for BMW 7 Series E32 750iL (1988)

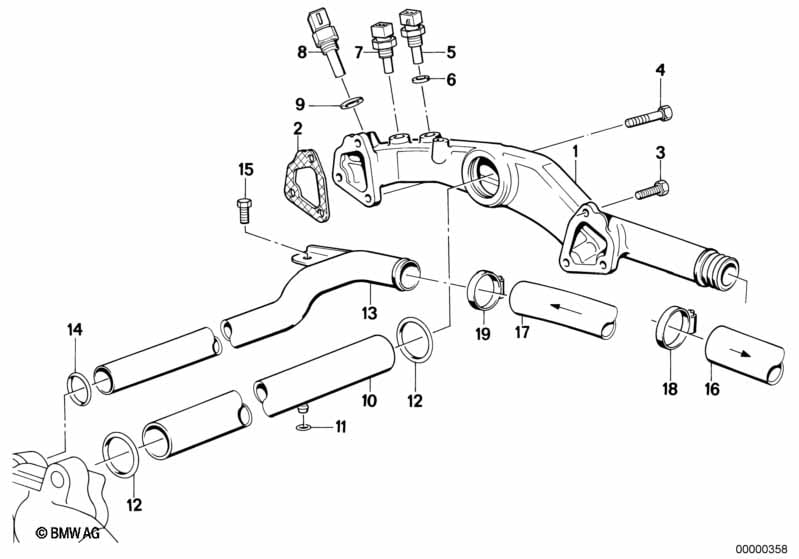

This Cooling system pipe technical drawing provides a detailed breakdown of the assembly for the 7 Series E32 750iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Heater water hose see main section 64 |
|||||||||
| 01 | Cooling system accumulator | 1 | 11531736641 | $166.12 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 11531725788 | $6.02 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X30-Z3 | 5 | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Temperature sensor, water | 3-POL-2500-OHM | 1 | 13621707366 | $71.05 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Temperature sensor, water | M14X1,5 | 1 | 12621288158 | $40.02 | Shop at ECS Tuning | ||||
| 08 | Engine coolant temp sensor | 2-POL | 1 | 12621747281 | $31.72 | ENDED | Shop at ECS Tuning | |||
| 08 | Engine coolant temp sensor | 2-POL | 1 | 12621710535 | $41.29 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Pipe | 1 | 11531715843 | $59.75 | Shop at ECS Tuning | |||||
| 11 | O-ring | 6,0X2,5MM | 1 | 11537501776 | $1.12 | ENDED | Shop at ECS Tuning | |||
| 12 | O-ring | 34,2X4,0MM | 2 | 11531710048 | $2.69 | Shop at ECS Tuning | ||||
| 13 | Pipe | 1 | 11531733350 | $163.58 | Shop at ECS Tuning | |||||
| 14 | O-ring | 19,5X3,0MM | 1 | 11531710055 | $1.25 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 16 | Water hose inlet 1 | 1 | 09/1988 | 64211382640 | $21.89 | Shop at ECS Tuning | ||||
| 17 | Return hose | 1 | 64211379942 | $90.00 | Shop at ECS Tuning | |||||
| 18 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 19 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
