Intake manifold system for BMW 5 Series E12 525

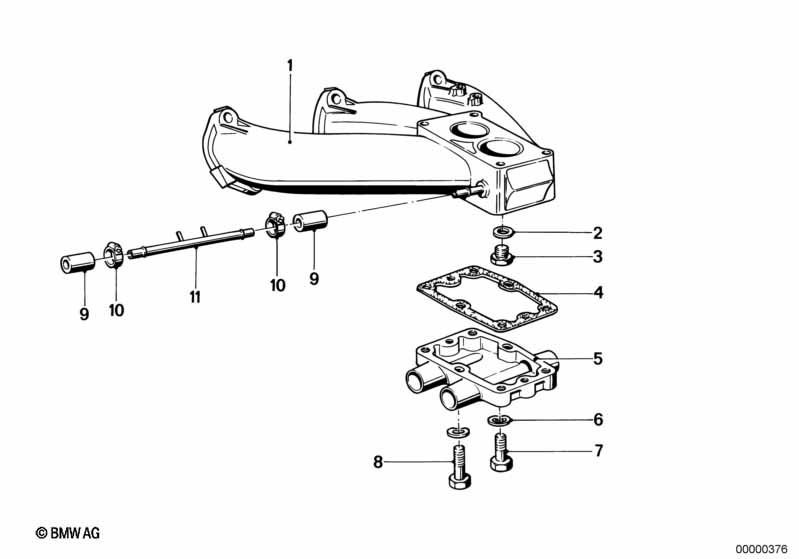

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold rear | 1 | 08/1975 | 11611259594 | ENDED | Shop at ECS Tuning | ||||
| 01 | Intake manifold rear | 1 | 08/1975 | 08/1976 | 11611263278 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Sweden version |
=Yes |
|||||||||
| 01 | Intake manifold rear | 1 | 10/1975 | 11611259594 | ENDED | Shop at ECS Tuning | ||||
| 01 | Intake manifold rear | 1 | 10/1975 | 08/1976 | 11611263225 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket ring | A14X18-AL | 1 | 08/1976 | 07119963200 | $0.38 | Shop at ECS Tuning | |||
| 03 | Screw plug | AM14X1,5 | 1 | 08/1976 | 07119909704 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 08/1976 | 11619065674 | $3.05 | Shop at ECS Tuning | ||||
| 05 | Cover | 1 | 08/1976 | 11611250693 | $107.19 | ENDED | Shop at ECS Tuning | |||
| 06 | Spring washer Black | B6-ZN | 4 | 08/1976 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 08/1976 | 07119904116 | $0.38 | Shop at ECS Tuning | |||
| 08 | Hex bolt | M6X35-8.8-ZNS3 | 2 | 08/1976 | 07119902998 | $0.38 | Shop at ECS Tuning | |||
| 09 | Bushing | 2 | 08/1975 | 08/1976 | 11611262752 | ENDED | Shop at ECS Tuning | |||
| 10 | Hose clamp | L15-19 | 4 | 08/1975 | 08/1976 | 07129952107 | $0.93 | Shop at ECS Tuning | ||
| 11 | Pipe | 1 | 08/1975 | 08/1976 | 11611263283 | ENDED | Shop at ECS Tuning | |||
