Intake manifold system for BMW 7 Series E23 728 (1978)

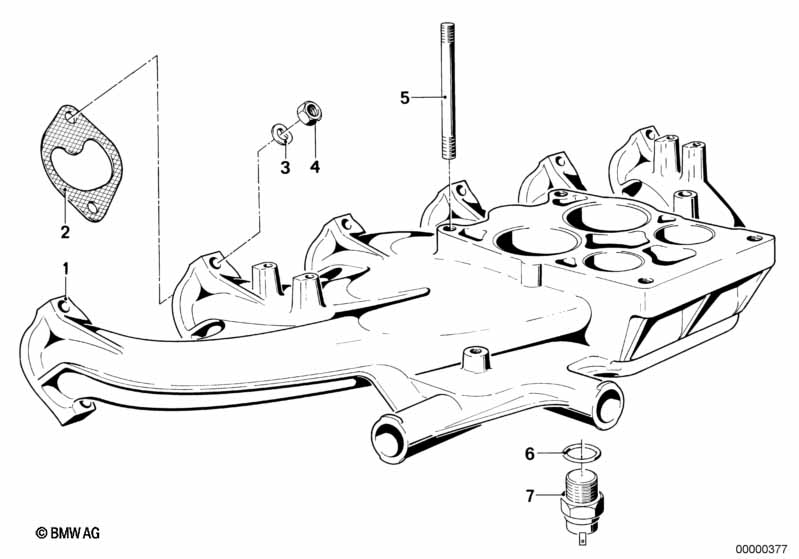

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1978.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 11611264393 | $439.70 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 6 | 11619065676 | $4.18 | Shop at ECS Tuning | |||||
| 03 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex nut wiht flange | M8 | X | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Stud bolt | M8X110 | 4 | 11611270661 | $5.02 | ENDED | Shop at ECS Tuning | |||
| 06 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Temperature switch | 17CEL | 1 | 61311364437 | $27.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728 Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 7 Series E23 728 produced during 1978. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold (Part #11611264393).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 7 Series E23 728 produced during 1978. These technical specifications ensure that parts like the Intake manifold (11611264393) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 7 Series E23 728, you can identify the Intake manifold by locating its position on the schematic, which then links to the official BMW part number 11611264393 for the Engine section.
