Intake manifold system for BMW 6 Series E24 633CSi (1979)

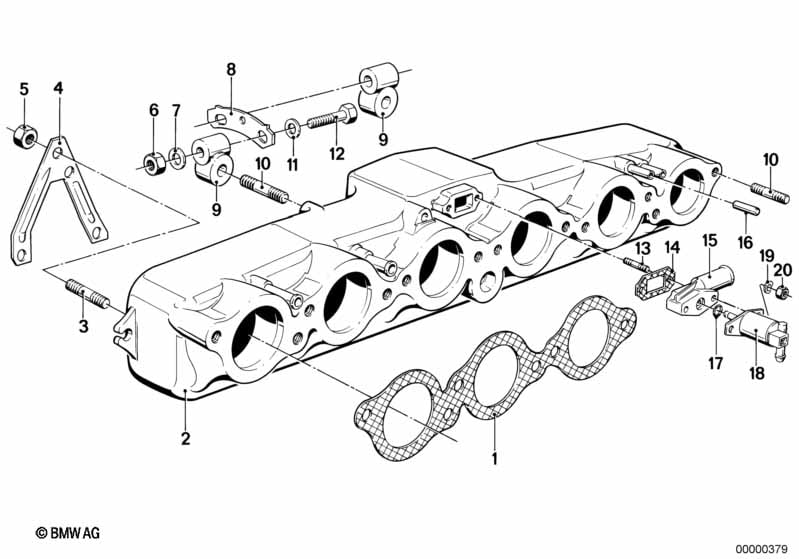

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 2 | 09/1981 | 11611730744 | $4.55 | Shop at ECS Tuning | ||||
| 02 | Air accumulator | 1 | 09/1981 | 11611270192 | $284.58 | ENDED | Shop at ECS Tuning | |||
| 03 | Stud bolt | M8X28 | 2 | 09/1980 | 07129908147 | $0.47 | Shop at ECS Tuning | |||
| 04 | Holder | 2 | 09/1980 | 11611256448 | $1.75 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut wiht flange | M8 | 2 | 09/1980 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | ||
| 13 | Stud bolt | M6X45 | 2 | 09/1981 | 07129908105 | $0.82 | Shop at ECS Tuning | |||
| 14 | Gasket Asbestos Free | 1 | 09/1981 | 11611730741 | $0.85 | ENDED | Shop at ECS Tuning | |||
| 15 | Connection flange | 1 | 09/1981 | 11611259412 | $17.02 | ENDED | Shop at ECS Tuning | |||
| 17 | O-ring | 6,3X2,4 | 1 | 09/1981 | 07119903045 | $1.67 | Shop at ECS Tuning | |||
| 18 | Starter valve | 1 | 09/1981 | 13641358917 | $106.30 | Shop at ECS Tuning | ||||
| 19 | Spring washer Black | B6-ZN | 2 | 09/1981 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 20 | Hex nut | M6-8-ZNNIV SI | 2 | 09/1981 | 07119905543 | $0.38 | Shop at ECS Tuning |
