Intake manifold system for BMW 7 Series E23 735i (1980)

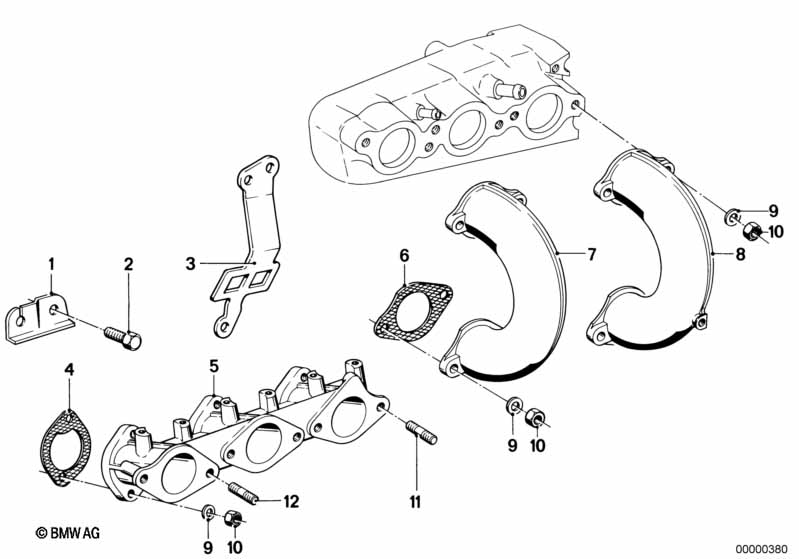

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1980.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 04 | Gasket Asbestos Free | 6 | 09/1980 | 11611730788 | $2.54 | Shop at ECS Tuning | ||||
| 05 | Intake manifold | ZYL.1-3 | 1 | 09/1980 | 11611256415 | $75.96 | ENDED | Shop at ECS Tuning | ||
| 05 | Intake manifold | ZYL.4-6 | 1 | 09/1980 | 11611256418 | $68.24 | Shop at ECS Tuning | |||
| 06 | Gasket Asbestos Free | 6 | 09/1980 | 11611730742 | $3.80 | Shop at ECS Tuning | ||||
| 07 | Suction pipe | 3 | 09/1980 | 11611256567 | $38.67 | ENDED | Shop at ECS Tuning | |||
| 08 | Suction pipe | 3 | 09/1980 | 11611259117 | $28.83 | ENDED | Shop at ECS Tuning | |||
| 09 | Wave washer | B8 | X | 09/1980 | 07119932095 | $0.09 | ENDED | Shop at ECS Tuning | ||
| 10 | Hex nut wiht flange | M8 | X | 09/1980 | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | ||
| 11 | Stud bolt | M8X40 | 9 | 09/1980 | 07129903964 | Shop at ECS Tuning | ||||
| 12 | Stud bolt | M8X28-ZN | 3 | 09/1980 | 07119908368 | $0.54 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 735i Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 7 Series E23 735i produced during 1980. It provides a detailed exploded view of the components, identifying key parts such as the Gasket Asbestos Free (Part #11611730788).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 7 Series E23 735i produced during 1980. These technical specifications ensure that parts like the Gasket Asbestos Free (11611730788) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 7 Series E23 735i, you can identify the Gasket Asbestos Free by locating its position on the schematic, which then links to the official BMW part number 11611730788 for the Engine section.
