Intake manifold system for BMW 5 Series E28 528e (1987)

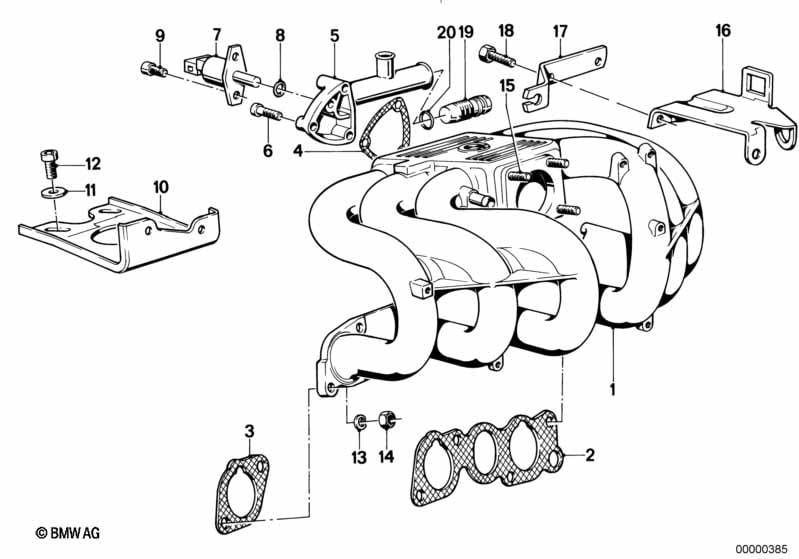

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold | 1 | 12/1986 | 11611713046 | $150.34 | ENDED | Shop at ECS Tuning | |||
| 02 | Gasket Asbestos Free | 1 | 12/1986 | 11611726012 | $5.79 | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 4 | 12/1986 | 11611726010 | $2.65 | Shop at ECS Tuning | ||||
| 04 | Gasket Asbestos Free | 1 | 11611717286 | $2.42 | Shop at ECS Tuning | |||||
| 05 | Connection flange | 1 | 11611285400 | $14.89 | ENDED | Shop at ECS Tuning | ||||
| 06 | ISA screw | M6X25-8.8-ZNS3 | 3 | 07129903807 | $1.74 | Shop at ECS Tuning | ||||
| 07 | Starter valve | 1 | 13641273278 | $275.97 | Shop at ECS Tuning | |||||
| 08 | O-ring | 6,3X2,4 | 1 | 07119903045 | $1.67 | Shop at ECS Tuning | ||||
| 09 | Fillister-head screw | M6X40 | 1 | 07119919936 | $0.30 | Shop at ECS Tuning | ||||
| 09 | ISA screw | M6X12-8.8-ZNNIV | 1 | 07129905867 | Shop at ECS Tuning | |||||
| 10 | Support plate | 1 | 09/1985 | 11611708838 | $4.28 | Shop at ECS Tuning | ||||
| 11 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 12 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 14 | Hex nut wiht flange | M8 | X | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 15 | Stud bolt | M6X35-ZNS3 | 4 | 07129903886 | Shop at ECS Tuning | |||||
| 16 | Bracket | 1 | 11611277431 | $3.04 | Shop at ECS Tuning | |||||
| 17 | Bracket | 1 | 11611274939 | $0.84 | Shop at ECS Tuning | |||||
| 18 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 528e Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 5 Series E28 528e produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold (Part #11611713046).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 5 Series E28 528e produced during 1987. These technical specifications ensure that parts like the Intake manifold (11611713046) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 5 Series E28 528e, you can identify the Intake manifold by locating its position on the schematic, which then links to the official BMW part number 11611713046 for the Engine section.
