Vacuum control - engine for BMW 3 Series E30 323i (1986)

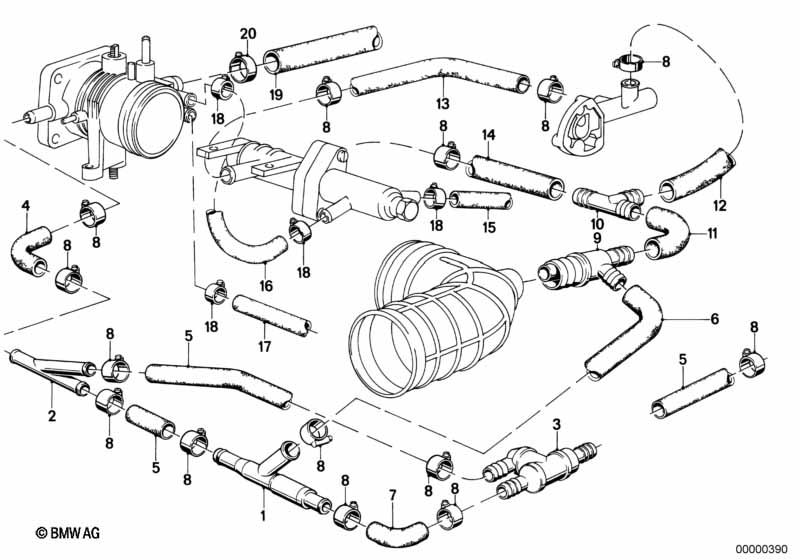

This Vacuum control - engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Air pump | 1 | 11611284269 | $34.29 | +core | Shop at ECS Tuning | ||||
| 02 | Distribution piece | 1 | 11611286452 | ENDED | Shop at ECS Tuning | |||||
| 03 | non-return valve | 2 | 34331154771 | $68.89 | Shop at ECS Tuning | |||||
| 04 | Connector | 1 | 34331153977 | $11.20 | Shop at ECS Tuning | |||||
| 05 | Vacuum hose | 12X19 | X | 34331115926 | $28.71 | +core | Shop at ECS Tuning | |||
| 06 | Hose | 1 | 11611287675 | $14.55 | Shop at ECS Tuning | |||||
| 07 | Connector | 3 | 34331116003 | $7.57 | Shop at ECS Tuning | |||||
| 07 | Connector | 1 | 34331153977 | $11.20 | Shop at ECS Tuning | |||||
| 08 | Hose clamp | L18-24 | X | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 09 | T-Connector | 1 | 13511267745 | $6.15 | ENDED | Shop at ECS Tuning | ||||
| 10 | T-Connector | 1 | 11631277295 | $0.95 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hose | 1 | 11611284661 | $7.28 | Shop at ECS Tuning | |||||
| 12 | Hose | 1 | 11611284660 | $14.55 | Shop at ECS Tuning | |||||
| 13 | Hose | 1 | 11611284663 | $18.20 | Shop at ECS Tuning | |||||
| 14 | Hose | 1 | 11611284662 | $16.22 | Shop at ECS Tuning | |||||
| 15 | Water hose | 9,5MM | X | 11531270148 | $10.77 | Shop at ECS Tuning | ||||
| 16 | Water hose | 1 | 11531286338 | $10.37 | Shop at ECS Tuning | |||||
| 17 | Water hose | 1 | 03/1988 | 13541705568 | $11.11 | Shop at ECS Tuning | ||||
| 18 | Hose clamp | L15-18 | 6 | 11151727509 | $1.02 | Shop at ECS Tuning | ||||
| 19 | Vent hose | 1 | 11151284611 | $21.07 | Shop at ECS Tuning | |||||
| 20 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 323i Vacuum control - engine?
- This technical diagram illustrates the Vacuum control - engine within the Engine group for the 3 Series E30 323i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Air pump (Part #11611284269).
- Which models use the hardware listed in this Vacuum control - engine?
- The hardware and components featured in the Vacuum control - engine are specific to the 3 Series E30 323i produced during 1986. These technical specifications ensure that parts like the Air pump (11611284269) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control - engine assembly?
- Each item in the Vacuum control - engine corresponds to the numbered list below the illustration. For the 3 Series E30 323i, you can identify the Air pump by locating its position on the schematic, which then links to the official BMW part number 11611284269 for the Engine section.
