Intake manifold system for BMW 3 Series E30 320i (1992)

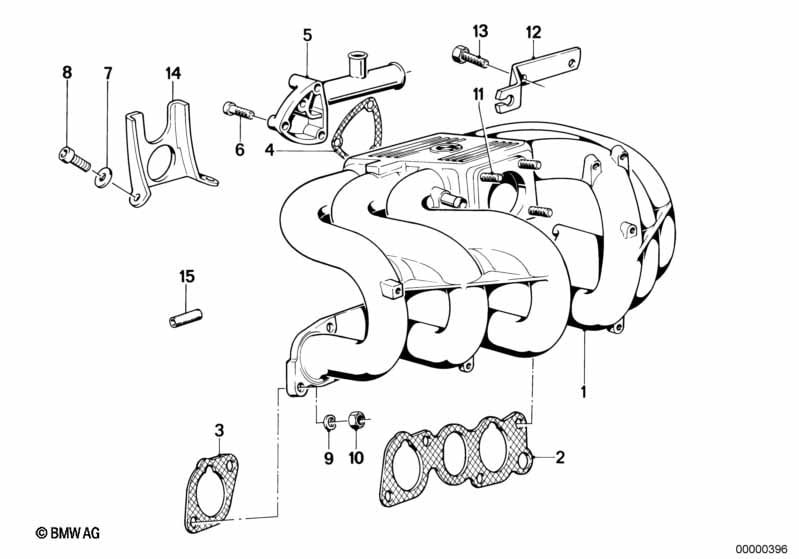

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Intake manifold | 1 | 11611719751 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket Asbestos Free | 1 | 11611726012 | $5.79 | Shop at ECS Tuning | |||||
| 03 | Gasket Asbestos Free | 4 | 11611726010 | $2.65 | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 1 | 11611717286 | $2.42 | Shop at ECS Tuning | |||||
| 05 | Connection flange | 1 | 11611708858 | $9.95 | ENDED | Shop at ECS Tuning | ||||
| 06 | ISA screw | M6X25-8.8-ZNS3 | 1 | 07129903807 | $1.74 | Shop at ECS Tuning | ||||
| 07 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 08 | ISA screw | M6X16-8.8-ZNNIV | 1 | 07129905536 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Hex nut wiht flange | M8 | X | 11611713432 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 11 | Stud bolt | M6X35-ZNS3 | 4 | 07129903886 | Shop at ECS Tuning | |||||
| 12 | Bracket | 1 | 11611274939 | $0.84 | Shop at ECS Tuning | |||||
| 12 | Bracket | 1 | 11611277431 | $3.04 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 14 | Support plate | 1 | 11611708838 | $4.28 | Shop at ECS Tuning | |||||
| 15 | Cap | D=5,0MM | 1 | 11611437694 | $3.39 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
