Vacuum control - engine for BMW 3 Series E21 318 (1977)

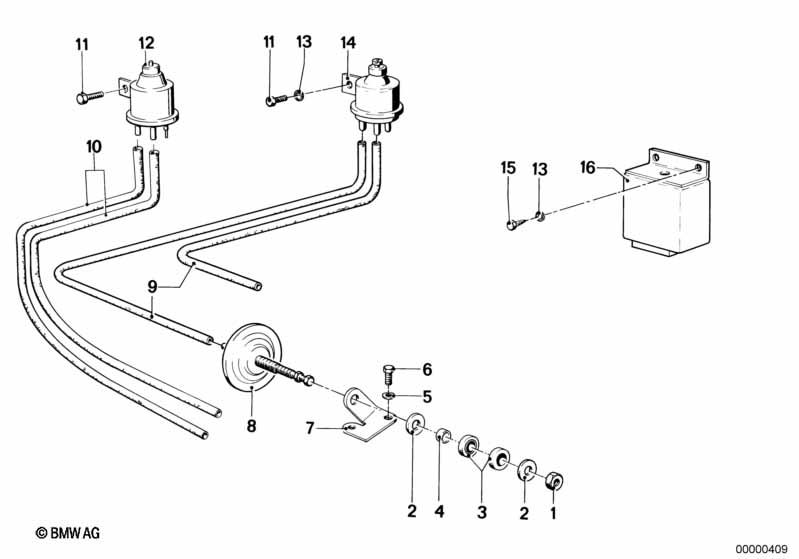

This Vacuum control - engine technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 318. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sweden version |
=Yes |
|||||||||
| 01 | Hex nut | M12X1 | 1 | 11512077715 | $0.58 | ENDED | Shop at ECS Tuning | |||
| 02 | Washer | 2 | 11731259162 | ENDED | Shop at ECS Tuning | |||||
| 03 | Bush | 2 | 11731259161 | ENDED | Shop at ECS Tuning | |||||
| 04 | Spacer sleeve | 1 | 11731259160 | ENDED | Shop at ECS Tuning | |||||
| 05 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 07 | Holder | 1 | 11731259134 | ENDED | Shop at ECS Tuning | |||||
| 08 | Vacumm box | 1 | 13211252253 | $89.60 | Shop at ECS Tuning | |||||
| 09 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M5X10 | 1 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 13 | Tooth washer | A5,1 | 3 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 14 | Electr.valve white | 1 | 11741265860 | $67.10 | ENDED | Shop at ECS Tuning | ||||
| 15 | Sheet metal screw | ST4,8X9,5-C-H-Z | 2 | 07119901200 | $0.17 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
