Vacuum control-AGR for BMW 3 Series E21 323i (1979)

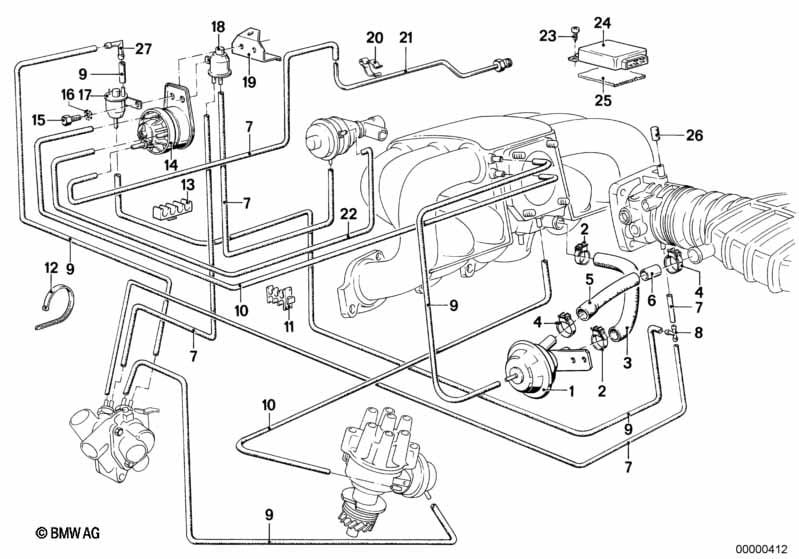

This Vacuum control-AGR technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 323i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Australia and Sweden version |
L810A=Yes =Yes |
|||||||||
| 01 | Vacuum limiter | 1 | 11741268885 | ENDED | Shop at ECS Tuning | |||||
| 02 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 03 | Hose | 1 | 11611284714 | $18.93 | Shop at ECS Tuning | |||||
| 04 | Hose clamp | L23-29 | 2 | 12/1995 | 07129952111 | $0.93 | ENDED | Shop at ECS Tuning | ||
| 04 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 05 | Hose | 1 | 11741268880 | $2.24 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pipe | 1 | 11151262643 | $8.93 | ENDED | Shop at ECS Tuning | ||||
| 07 | Vacuum hose red | 3,3X1,8 | X | 11747797050 | $17.32 | Shop at ECS Tuning | ||||
| 10 | Vacuum hose white | 3,3X1,8 | X | 11747797177 | $17.14 | Shop at ECS Tuning | ||||
| 11 | Clamp | 1 | 11731268899 | ENDED | Shop at ECS Tuning | |||||
| 12 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 13 | Clamp | 1 | 11731259204 | ENDED | Shop at ECS Tuning | |||||
| 14 | Pressure converter | 1 | 09/1980 | 11741264702 | $118.96 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X10-8.8-ZNS3 | 5 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 16 | Spring washer Black | B6-ZN | 5 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 18 | Electr.valve red | 1 | 11741265861 | $21.24 | ENDED | Shop at ECS Tuning | ||||
| 19 | Holder | 1 | 11781271509 | ENDED | Shop at ECS Tuning | |||||
| 20 | Pipe clamp | 1 | 11781268910 | ENDED | Shop at ECS Tuning | |||||
| 21 | Pipe | 1 | 11781268897 | $13.50 | ENDED | Shop at ECS Tuning | ||||
| 22 | Vacuum hose blue | 3,3X1,8 | X | 11747797082 | $17.14 | Shop at ECS Tuning | ||||
| 23 | Fillister head self-tapping screw | ST4,8X13-Z1 | 2 | 07119907956 | $0.18 | Shop at ECS Tuning | ||||
| 24 | Relay for speed switch | 1 | 12631267456 | ENDED | Shop at ECS Tuning | |||||
| 25 | Sound absorber | 1 | 12631269295 | $0.67 | ENDED | Shop at ECS Tuning | ||||
| 26 | Cap | D=3,5MM | X | 11611437560 | $3.39 | Shop at ECS Tuning | ||||
| 27 | Support | 1 | 22116759728 | $0.79 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E21 323i Vacuum control-AGR?
- This technical diagram illustrates the Vacuum control-AGR within the Engine group for the 3 Series E21 323i produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Vacuum limiter (Part #11741268885).
- Which models use the hardware listed in this Vacuum control-AGR?
- The hardware and components featured in the Vacuum control-AGR are specific to the 3 Series E21 323i produced during 1979. These technical specifications ensure that parts like the Vacuum limiter (11741268885) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Vacuum control-AGR assembly?
- Each item in the Vacuum control-AGR corresponds to the numbered list below the illustration. For the 3 Series E21 323i, you can identify the Vacuum limiter by locating its position on the schematic, which then links to the official BMW part number 11741268885 for the Engine section.
