Vacuum control-AGR for BMW 7 Series E23 735i (1986)

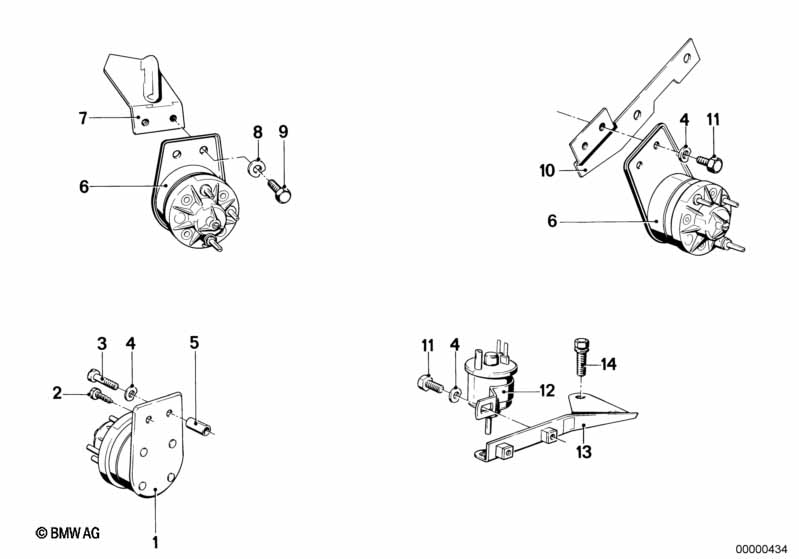

This Vacuum control-AGR technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Switzerland or National version Australia or National version sweden |
L804A=Yes L810A=Yes V010A=Yes |
|||||||||
| 06 | Pressure converter | 1 | 09/1982 | 11741285247 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 07 | Holder | 1 | 09/1982 | 11741268967 | ENDED | Shop at ECS Tuning | ||||
| 12 | Electr.valve red | 1 | 09/1982 | 11741265877 | $58.40 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
