Intake manifold system for BMW 6 Series E24 635CSi (1982)

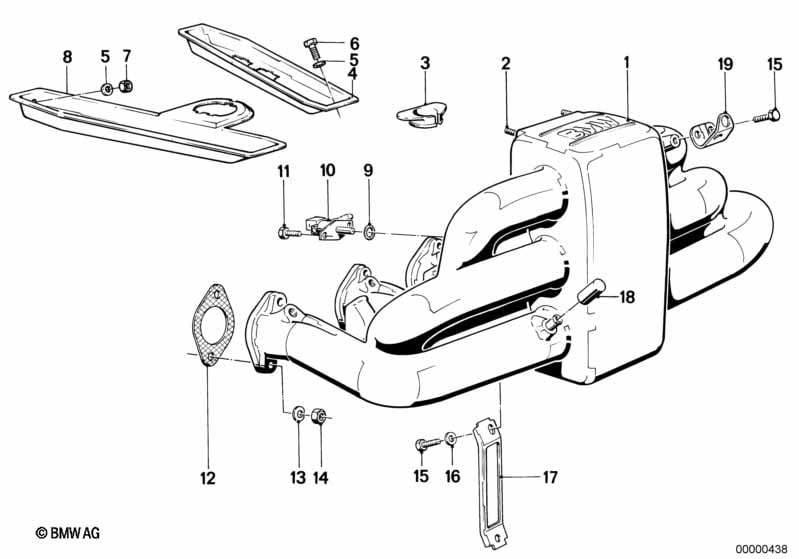

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.

Intake manifold system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Intake manifold 1 09/1980 06/1987 11611276404 $817.47 ENDED Shop at ECS Tuning
02 Stud bolt M6X30-ZN 4 09/1980 06/1987 07129908102 $0.36 ENDED Shop at ECS Tuning
03 Protection ring 1 09/1980 06/1987 13531276513 $1.03 ENDED Shop at ECS Tuning
04 Supporting arm 1 09/1980 06/1987 11611284749 $21.40 Shop at ECS Tuning
05 Washer A8,4-200 4 09/1980 06/1987 07119900052 $0.11 ENDED Shop at ECS Tuning
06 Hex bolt M8X20-ZNNIV SI 2 09/1980 06/1987 07119903039 Shop at ECS Tuning
07 Hex nut M8-ZNS 2 09/1980 06/1987 07119922856 $0.56 ENDED Shop at ECS Tuning
08 Supporting arm 1 09/1980 06/1987 11611278069 $21.40 Shop at ECS Tuning
09 O-ring 6.5X2.0 1 09/1980 06/1987 11611254062 $1.33 ENDED Shop at ECS Tuning
10 Starter valve 1 09/1980 06/1987 13641358917 $106.30 Shop at ECS Tuning
11 Hex bolt M6X12 2 09/1980 06/1987 07119913442 $0.25 ENDED Shop at ECS Tuning
12 Gasket Asbestos Free 6 09/1980 06/1987 11611730788 $2.54 Shop at ECS Tuning
13 Wave washer B8 X 09/1980 06/1987 07119932095 $0.09 ENDED Shop at ECS Tuning
14 Hex nut wiht flange M8 X 09/1980 06/1987 11611713432 $0.43 ENDED Shop at ECS Tuning
15 Hex bolt M6X16-8.8 ZN 3 09/1980 06/1987 07119913466 $0.18 ENDED Shop at ECS Tuning
16 Washer 6,4 1 09/1980 06/1987 07119936425 $0.09 ENDED Shop at ECS Tuning
17 Support plate 1 09/1980 06/1987 11611272899 $6.81 ENDED Shop at ECS Tuning
18 Cap D=3,5MM 1 09/1980 06/1987 11611437560 $3.39 Shop at ECS Tuning
18 Cap D=10,5 1 09/1980 06/1987 11611747085 $5.09 Shop at ECS Tuning
19 Bracket 1 09/1980 06/1987 13541711061 $3.48 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
