Engine acoustics for BMW 8 Series E31 850Ci (1991)

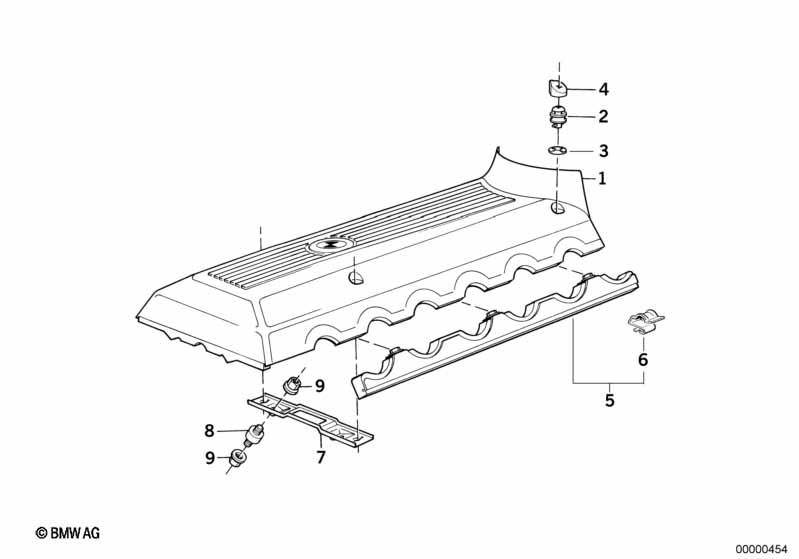

This Engine acoustics technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound protection cap | 1 | 11611718681 | $351.38 | ENDED | Shop at ECS Tuning | ||||
| 02 | Lock | 4 | 11611401507 | $5.67 | ENDED | Shop at ECS Tuning | ||||
| 03 | Circlip | 4 | 11611725544 | $1.77 | Shop at ECS Tuning | |||||
| 04 | Cap | 4 | 11611715598 | $5.09 | ENDED | Shop at ECS Tuning | ||||
| 05 | Sound insulation | 2 | 11611729659 | $100.25 | Shop at ECS Tuning | |||||
| 06 | Cable clamp | D=5MM | 1 | 61131353126 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Holder | 2 | 11611720061 | $11.10 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber Mounting | 4 | 11611725167 | $7.96 | Shop at ECS Tuning | |||||
| 09 | Hex nut with plate | M6 ZNT | 8 | 07149156628 | $0.25 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
