Intake manifold system for BMW 3 Series E30 318is (1991)

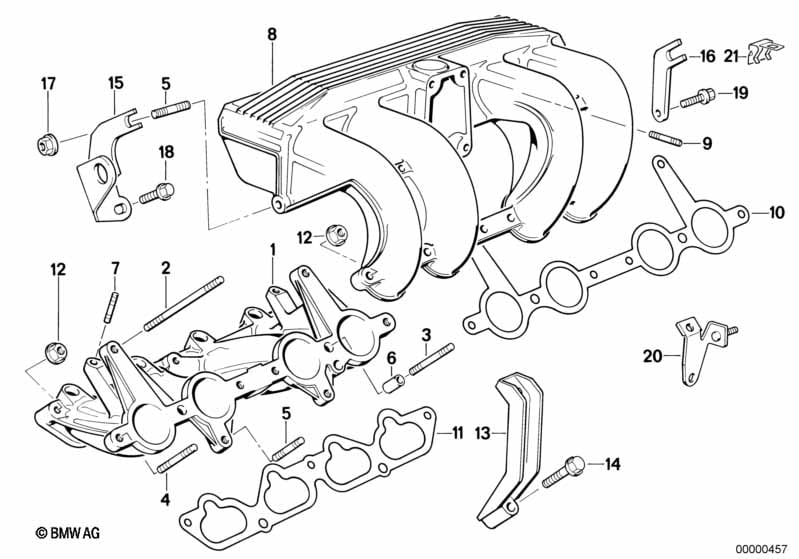

This Intake manifold system technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Intake manifold lower part | 1 | 11611721725 | $326.13 | ENDED | Shop at ECS Tuning | ||||
| 02 | Stud bolt | M7X85 | 2 | 07129908126 | ENDED | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M7X45 | 3 | 07129908199 | $0.89 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M7X40 | 3 | 07129908121 | $1.18 | Shop at ECS Tuning | ||||
| 05 | Stud bolt | M7X30 | 3 | 07129908125 | $0.96 | Shop at ECS Tuning | ||||
| 06 | Dowel | D=9,5MM | 2 | 11121713264 | $3.48 | Shop at ECS Tuning | ||||
| 07 | Stud bolt | M6X25-ZN | 2 | 07129908100 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Intake manifold upper part | 1 | 11611721728 | ENDED | Shop at ECS Tuning | |||||
| 09 | Stud bolt | M6X40 | 4 | 07129904546 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Throttle Housing Assy | 35/54 | 1 | 13541739241 | $355.76 | Shop at ECS Tuning | ||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 09 | Stud bolt | M6X28-ZN | 4 | 07129908111 | $0.63 | Shop at ECS Tuning | ||||
| 10 | Gasket Asbestos Free | 1 | 11611717761 | $12.88 | Shop at ECS Tuning | |||||
| 11 | Gasket Asbestos Free | 1 | 11611734684 | $11.46 | Shop at ECS Tuning | |||||
| 12 | Hex nut with plate | AM7 ZNNIV SI | X | 07129905541 | $0.64 | Shop at ECS Tuning | ||||
| 13 | Support | 1 | 11611727096 | $7.42 | ENDED | Shop at ECS Tuning | ||||
| 14 | Hex bolt | M8X50-U1-8.8 | 1 | 07119904504 | $1.15 | Shop at ECS Tuning | ||||
| 14 | Hex bolt with washer | M8X50-Z1-ZNS | 1 | 07119901947 | $0.96 | ENDED | Shop at ECS Tuning | |||
| 15 | Holder | 1 | 11611721762 | $10.88 | Shop at ECS Tuning | |||||
| 16 | Support | 1 | 11611721914 | $1.77 | Shop at ECS Tuning | |||||
| 17 | Hex nut with plate | BM7 | 2 | 07129946307 | $0.62 | Shop at ECS Tuning | ||||
| 18 | Hex bolt with washer | M8X20-ZNS3 | 2 | 07147165618 | $0.73 | Shop at ECS Tuning | ||||
| 19 | Hex bolt with washer | M7X20-Z1 | 1 | 07119915305 | ENDED | Shop at ECS Tuning | ||||
| 20 | Holder | 1 | 11611727040 | $5.70 | ENDED | Shop at ECS Tuning | ||||
| 21 | Holder | 1 | 11611727093 | $1.48 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 318is Intake manifold system?
- This technical diagram illustrates the Intake manifold system within the Engine group for the 3 Series E30 318is produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Intake manifold lower part (Part #11611721725).
- Which models use the hardware listed in this Intake manifold system?
- The hardware and components featured in the Intake manifold system are specific to the 3 Series E30 318is produced during 1991. These technical specifications ensure that parts like the Intake manifold lower part (11611721725) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Intake manifold system assembly?
- Each item in the Intake manifold system corresponds to the numbered list below the illustration. For the 3 Series E30 318is, you can identify the Intake manifold lower part by locating its position on the schematic, which then links to the official BMW part number 11611721725 for the Engine section.
