Emission control for BMW 5 Series E28 535i (1987)

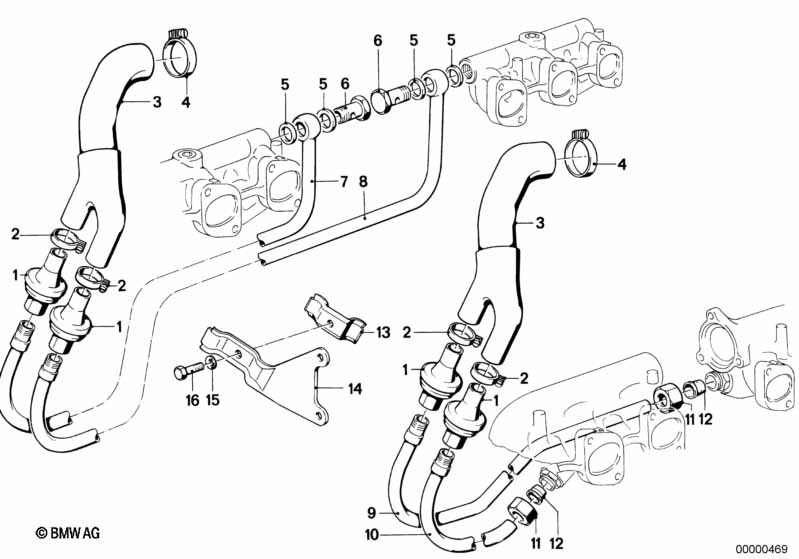

This Emission control technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Switzerland or National version Australia or National version sweden |
L804A=Yes L810A=Yes V010A=Yes |
|||||||||
| 01 | Air valve | 2 | 09/1982 | 11721266889 | $62.78 | ENDED | Shop at ECS Tuning | |||
| 02 | Hose clamp | L16-30 | 2 | 09/1982 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 03 | Hose | 1 | 09/1982 | 11721267997 | $16.94 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L28-33 | 1 | 09/1982 | 07129952113 | $0.96 | Shop at ECS Tuning | |||
| 05 | Gasket ring | A22X27-CU | 4 | 09/1982 | 07119963354 | $0.36 | Shop at ECS Tuning | |||
| 06 | Hollow bolt | 2 | 09/1982 | 11721267918 | $7.59 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland or National version sweden |
L804A=Yes V010A=Yes |
|||||||||
| 07 | Pipe 1.-3.cylinder | 1 | 09/1982 | 11721267921 | $37.67 | ENDED | Shop at ECS Tuning | |||
| 08 | Pipe 4.-6.cylinder | 1 | 09/1982 | 11721267922 | $35.43 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland or National version Australia or National version sweden |
L804A=Yes L810A=Yes V010A=Yes |
|||||||||
| 13 | Bow | 1 | 09/1982 | 11721266928 | $2.96 | ENDED | Shop at ECS Tuning | |||
| 14 | Holder | 1 | 09/1982 | 11721266988 | $2.90 | ENDED | Shop at ECS Tuning | |||
| 15 | Spring washer Black | B6-ZN | 1 | 09/1982 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 16 | Hex bolt | M6X20-8.8-ZNS | 1 | 09/1982 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
