Emission control for BMW 7 Series E23 735i (1982)

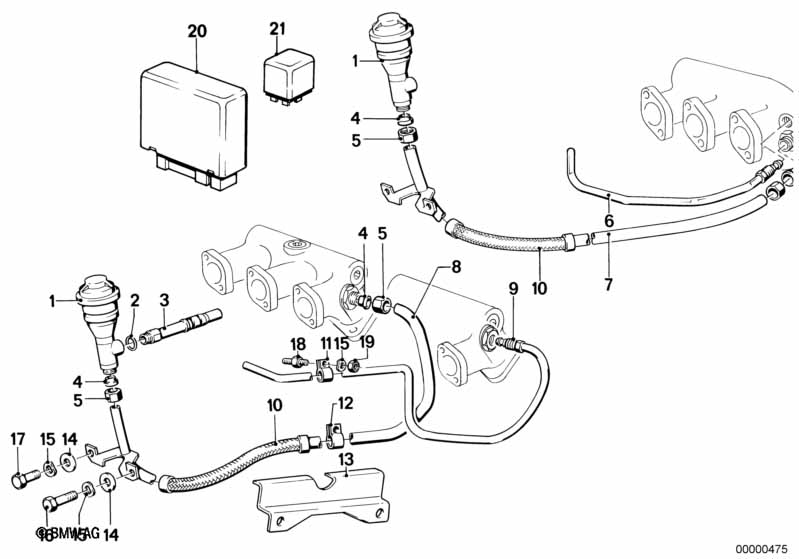

This Emission control technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 10 | Insulating hose | 1 | 09/1978 | 11711260112 | ENDED | Shop at ECS Tuning | ||||
| 10 | Insulating hose | 1 | 09/1978 | 11711247231 | $21.20 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose clamp | L15-19 | 2 | 09/1978 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| For vehicles with National version Australia or National version sweden |
L810A=Yes V010A=Yes |
|||||||||
| 10 | Insulating hose | 1 | 09/1978 | 11711260112 | ENDED | Shop at ECS Tuning | ||||
| 10 | Insulating hose | 1 | 09/1978 | 11711247231 | $21.20 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Hose clamp | L15-19 | 2 | 09/1978 | 07129952107 | $0.93 | Shop at ECS Tuning | |||
| 11 | Pipe clamp | 1 | 09/1978 | 11731264159 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 12 | Pipe clamp | 1 | 09/1978 | 11531257511 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Australia or National version sweden |
L810A=Yes V010A=Yes |
|||||||||
| 12 | Pipe clamp | 1 | 09/1978 | 11531257511 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
L804A=Yes |
|||||||||
| 13 | Protective COVER | 1 | 09/1978 | 11711260124 | $2.85 | ENDED | Shop at ECS Tuning | |||
| For vehicles with National version Australia or National version sweden |
L810A=Yes V010A=Yes |
|||||||||
| 13 | Protective COVER | 1 | 09/1978 | 11711260124 | $2.85 | ENDED | Shop at ECS Tuning | |||
| 14 | Washer | A6,4-200HV-ZNS3 | 2 | 09/1978 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 15 | Spring washer Black | B6-ZN | 3 | 09/1978 | 07119932073 | $0.38 | Shop at ECS Tuning | |||
| 16 | Hex bolt | M6X18 | 1 | 09/1978 | 23317545769 | $0.67 | Shop at ECS Tuning | |||
| 17 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 09/1978 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 18 | Stud bolt | 1 | 09/1978 | 11731270541 | $4.74 | ENDED | Shop at ECS Tuning | |||
| 19 | Hex nut | M6-8-ZNNIV SI | 1 | 09/1978 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
