Exhaust manifold for BMW 5 Series E28 535i (1987)

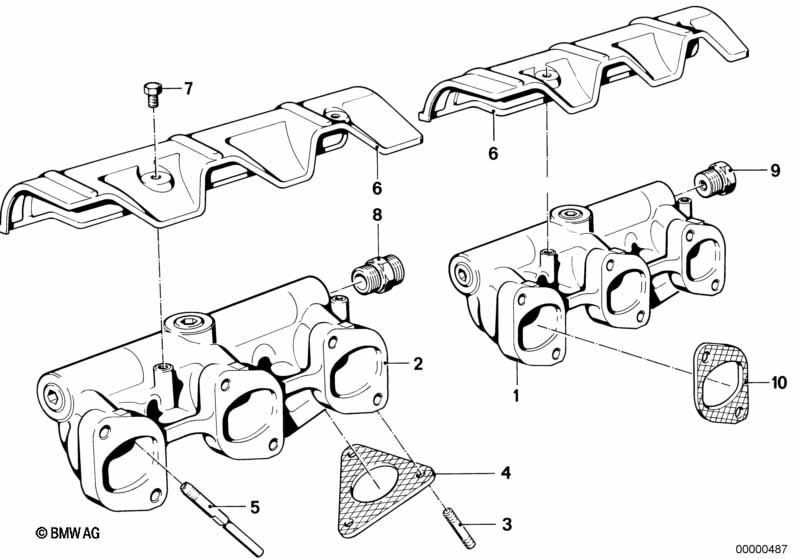

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with National version Switzerland or National version sweden |
L804A=Yes V010A=Yes |
|||||||||
| 01 | Exhaust manifold, rear | 1 | 09/1983 | 11751285274 | ENDED | Shop at ECS Tuning | ||||
| 02 | Exhaust manifold, front | 1 | 09/1983 | 11751285272 | ENDED | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M10X35 | 6 | 11/1982 | 11621711671 | $3.05 | Shop at ECS Tuning | |||
| 04 | Gasket Asbestos Free | 2 | 11/1982 | 11761711717 | $18.37 | Shop at ECS Tuning | ||||
| 05 | Air feed-in pipe | 6 | 11/1982 | 11751267859 | $12.28 | ENDED | Shop at ECS Tuning | |||
| 06 | Asbesto-free protective cover | 2 | 11/1982 | 11759068651 | $169.63 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X10-8.8-ZNS3 | 4 | 11/1982 | 07119904633 | $0.20 | Shop at ECS Tuning | |||
| 08 | Threaded pipe joint | 1 | 11/1982 | 11711266853 | $5.13 | ENDED | Shop at ECS Tuning | |||
| 09 | Threaded pipe joint | 1 | 11/1982 | 11711266854 | $3.74 | ENDED | Shop at ECS Tuning | |||
