Exhaust manifold for BMW 5 Series E12 528i (1981)

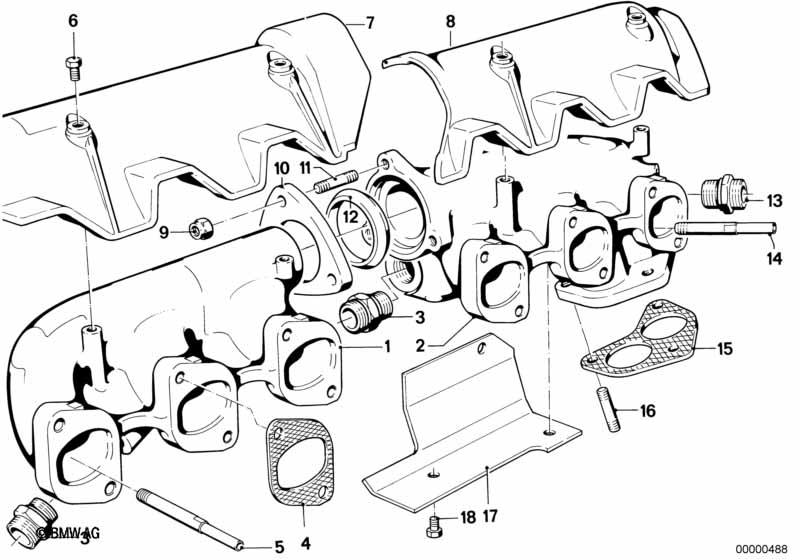

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Australia |
L810A=Yes |
||||||||
| 01 | Exhaust manifold, front | 1 | 09/1978 | 11751266985 | ENDED | Shop at ECS Tuning | ||||
| 02 | Exhaust manifold, rear | 1 | 09/1978 | 11751267855 | $398.41 | ENDED | Shop at ECS Tuning | |||
| 03 | Threaded pipe joint | 2 | 09/1978 | 11751261519 | $22.57 | ENDED | Shop at ECS Tuning | |||
| 04 | Gasket Asbestos Free | 6 | 09/1978 | 11621723851 | $5.70 | Shop at ECS Tuning | ||||
| 05 | Air feed-in pipe | 5 | 09/1978 | 11751266987 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M6X16 | 4 | 09/1978 | 07119913460 | ENDED | Shop at ECS Tuning | |||
| 08 | Covering plate | 1 | 09/1978 | 11621251426 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | 3 | 09/1978 | 18307620549 | Shop at ECS Tuning | ||||
| 10 | Flange | 1 | 09/1978 | 11621251423 | $18.94 | Shop at ECS Tuning | ||||
| 11 | Stud bolt | M8X40 | 3 | 09/1978 | 07129908139 | $0.88 | Shop at ECS Tuning | |||
| 12 | Gasket ring asbesto-free | 1 | 09/1978 | 11621723889 | $14.68 | Shop at ECS Tuning | ||||
| 12 | Gasket ring asbesto-free | 1 | 09/1978 | 11621723867 | Shop at ECS Tuning | |||||
| 13 | Threaded pipe joint | 1 | 09/1978 | 11711266853 | $5.13 | ENDED | Shop at ECS Tuning | |||
| 14 | Air feed-in pipe | 1 | 09/1978 | 11751267859 | $12.28 | ENDED | Shop at ECS Tuning | |||
| 15 | Gasket Asbestos Free | 1 | 09/1978 | 18111728363 | $17.87 | Shop at ECS Tuning | ||||
| 16 | Stud bolt | M10X35 | 3 | 09/1978 | 11621711671 | $3.05 | Shop at ECS Tuning | |||
| 17 | Heat resistant plate | 1 | 09/1978 | 11751268952 | ENDED | Shop at ECS Tuning | ||||
| 18 | Hex bolt | M6X10-8.8-ZNS3 | 3 | 09/1978 | 07119904633 | $0.20 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
