Exhaust manifold for BMW 6 Series E24 633CSi (1979)

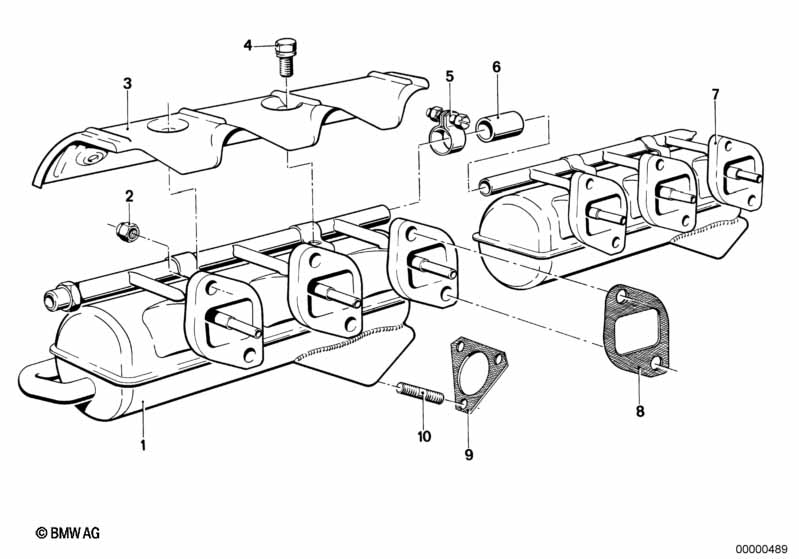

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust gas reactor front | 1 | 09/1979 | 11751264063 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex nut wiht flange | M8 | X | 09/1979 | 18307620549 | Shop at ECS Tuning | ||||
| 03 | Protective COVER | 2 | 09/1979 | 11751260061 | $9.38 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex bolt with washer | M6X10-Z3-1 | 8 | 09/1979 | 07119915058 | ENDED | Shop at ECS Tuning | |||
| 05 | Clamp | 1 | 09/1979 | 11751260105 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring asbesto-free | 1 | 09/1979 | 11751723846 | $13.91 | ENDED | Shop at ECS Tuning | |||
| 07 | Exhaust gas reactor rear | 1 | 09/1979 | 11751264064 | $811.89 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket Asbestos Free | 6 | 09/1979 | 11621723851 | $5.70 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 2 | 09/1979 | 11761711717 | $18.37 | Shop at ECS Tuning | ||||
| 10 | Stud bolt | M10X35 | 6 | 09/1979 | 11621711671 | $3.05 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Exhaust manifold?
- This technical diagram illustrates the Exhaust manifold within the Engine group for the 6 Series E24 633CSi produced during 1979. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust gas reactor front (Part #11751264063).
- Which models use the hardware listed in this Exhaust manifold?
- The hardware and components featured in the Exhaust manifold are specific to the 6 Series E24 633CSi produced during 1979. These technical specifications ensure that parts like the Exhaust gas reactor front (11751264063) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold assembly?
- Each item in the Exhaust manifold corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Exhaust gas reactor front by locating its position on the schematic, which then links to the official BMW part number 11751264063 for the Engine section.
