Exhaust manifold for BMW 7 Series E23 733i (1982)

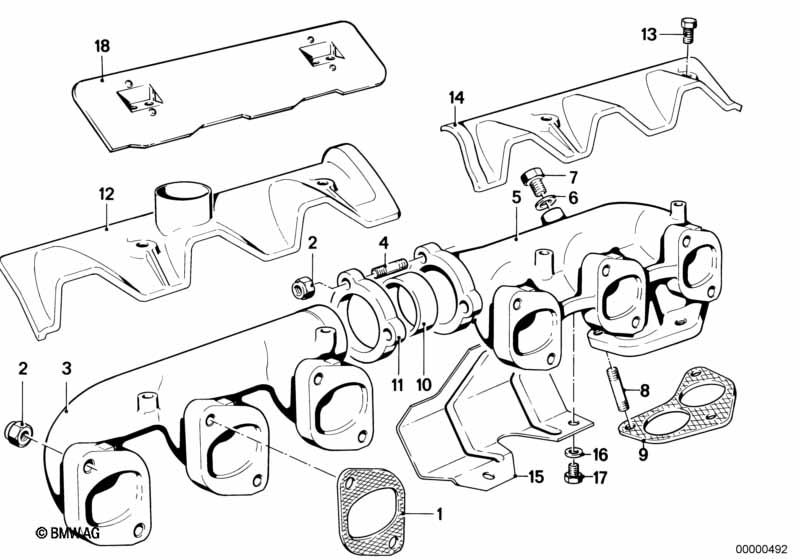

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Gasket Asbestos Free | 6 | 11621723851 | $5.70 | Shop at ECS Tuning | |||||
| 02 | Hex nut wiht flange | M8 | X | 18307620549 | Shop at ECS Tuning | |||||
| 03 | Exhaust manifold, front | 1 | 11621251417 | $128.03 | ENDED | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M8X35-8.8-PHR | 3 | 07129908130 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Stud bolt | M8X40 | 3 | 07129908139 | $0.88 | Shop at ECS Tuning | ||||
| 05 | Exhaust manifold, rear | 1 | 11621266130 | $404.21 | ENDED | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A8X11,5-AL | 2 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Screw plug | CM8X1 | 2 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 08 | Stud bolt | M10X35 | 3 | 11621711671 | $3.05 | Shop at ECS Tuning | ||||
| 09 | Gasket Asbestos Free | 1 | 18111728363 | $17.87 | Shop at ECS Tuning | |||||
| 10 | Gasket ring asbesto-free | 1 | 11621723889 | $14.68 | Shop at ECS Tuning | |||||
| 10 | Gasket ring asbesto-free | 1 | 11621723867 | Shop at ECS Tuning | ||||||
| 11 | Flange | 1 | 11621251423 | $18.94 | Shop at ECS Tuning | |||||
| 13 | Hex bolt | M6X16 | 4 | 07119913460 | ENDED | Shop at ECS Tuning | ||||
| 14 | Covering plate | 1 | 11621251426 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
