Exhaust manifold for BMW 5 Series E28 M535i (1987)

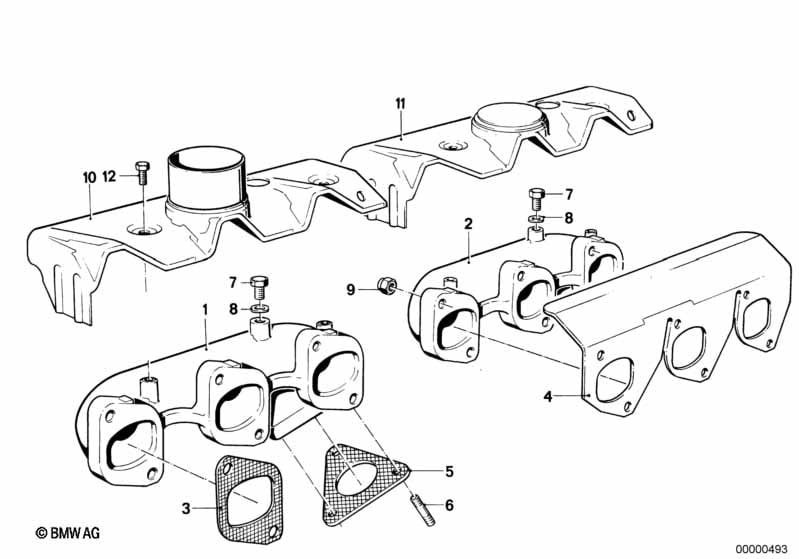

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 M535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 11621707456 | $143.13 | Shop at ECS Tuning | |||||
| 01 | Exhaust manifold | 1 | 11621708791 | $228.22 | Shop at ECS Tuning | |||||
| 02 | Exhaust manifold | 1 | 11621707456 | $143.13 | Shop at ECS Tuning | |||||
| 02 | Exhaust manifold | 1 | 11621708791 | $228.22 | Shop at ECS Tuning | |||||
| 04 | Gasket w/heat prot.shield asbestosfree | 2 | 11621723656 | $39.83 | ENDED | Shop at ECS Tuning | ||||
| 04 | Gasket w/heat prot.shield asbestosfree | 2 | 09/1982 | 11621723656 | $39.83 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket Asbestos Free | 2 | 11761711717 | $18.37 | Shop at ECS Tuning | |||||
| 06 | Stud bolt | M10X35 | 6 | 11621711671 | $3.05 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M10X40 | 6 | 11621716870 | $6.17 | Shop at ECS Tuning | ||||
| 07 | Screw plug | CM8X1 | 2 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A8X11,5-AL | 2 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M8 SW12 | X | 11621744323 | $0.85 | Shop at ECS Tuning | ||||
| 09 | Hex nut wiht flange | M8 | X | 18307620549 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E28 M535i Exhaust manifold?
- This technical diagram illustrates the Exhaust manifold within the Engine group for the 5 Series E28 M535i produced during 1987. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust manifold (Part #11621707456).
- Which models use the hardware listed in this Exhaust manifold?
- The hardware and components featured in the Exhaust manifold are specific to the 5 Series E28 M535i produced during 1987. These technical specifications ensure that parts like the Exhaust manifold (11621707456) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold assembly?
- Each item in the Exhaust manifold corresponds to the numbered list below the illustration. For the 5 Series E28 M535i, you can identify the Exhaust manifold by locating its position on the schematic, which then links to the official BMW part number 11621707456 for the Engine section.
