Exhaust manifold for BMW 6 Series E24 635CSi (1989)

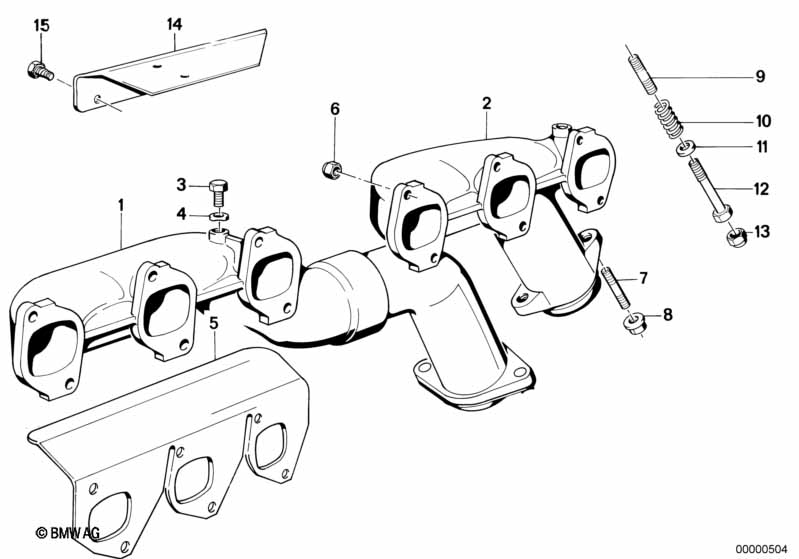

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.

Exhaust manifold
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Exhaust manifold, front 1 06/1987 11621711666 $364.93 Shop at ECS Tuning
02 Exhaust manifold, rear 1 06/1987 11621708717 $305.78 Shop at ECS Tuning
03 Screw plug CM8X1 2 06/1987 07119919210 $2.24 Shop at ECS Tuning
04 Gasket ring A8X11,5-AL 2 06/1987 07119963041 $0.57 Shop at ECS Tuning
05 Gasket w/heat prot.shield asbestosfree 2 06/1987 11621723656 $39.83 ENDED Shop at ECS Tuning
For vehicles with
National version Switzerland
L804A=Yes
05 Gasket w/heat prot.shield asbestosfree 2 06/1987 11621723656 $39.83 ENDED Shop at ECS Tuning
For vehicles with
Sweden version
=Yes
05 Gasket w/heat prot.shield asbestosfree 2 06/1987 11621723656 $39.83 ENDED Shop at ECS Tuning
06 Hex nut wiht flange M8 X 06/1987 18307620549 Shop at ECS Tuning
07 Stud bolt M10X55 10.9 2 06/1987 11621711672 $4.07 Shop at ECS Tuning
08 Hex nut M10 2 06/1987 18301737774 $1.65 Shop at ECS Tuning
09 Stud bolt M8X95 2 06/1987 11621716884 $5.60 Shop at ECS Tuning
09 Stud bolt M8X87 2 06/1987 11621723725 $7.62 Shop at ECS Tuning
10 Compression spring 4 06/1987 11761716668 $5.81 Shop at ECS Tuning
11 Washer 4 06/1987 11621716346 $0.37 Shop at ECS Tuning
12 Hex bolt M8X65 2 06/1987 11621716352 $3.85 Shop at ECS Tuning
13 Hex nut wiht flange M8 2 06/1987 18307620549 Shop at ECS Tuning
14 Covering plate 2 06/1987 11621716702 ENDED Shop at ECS Tuning
15 Hex bolt M6X10-8.8-ZNS3 6 06/1987 07119904633 $0.20 Shop at ECS Tuning
Notes
  • ENDED = the part has been discontinued (no longer available).
