Exhaust manifold for BMW 3 Series E30 325i (1992)

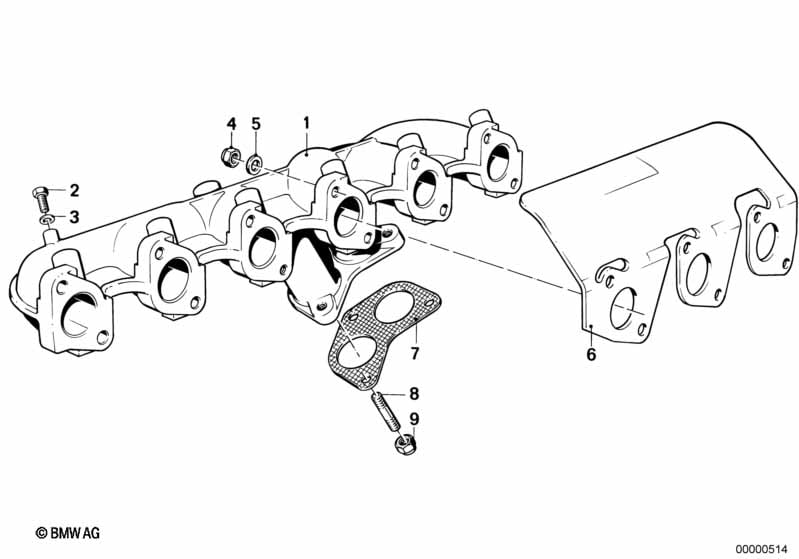

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 1 | 09/1987 | 11621716443 | Shop at ECS Tuning | |||||
| applicable only for sports version | ||||||||||
| 01 | Exhaust manifold | 1 | 11621707494 | ENDED | Shop at ECS Tuning | |||||
| 02 | Screw plug | CM8X1 | 2 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 03 | Gasket ring | A8X11,5-AL | 2 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 04 | Hex nut wiht flange | M8 | X | 18307620549 | Shop at ECS Tuning | |||||
| 05 | Washer | X | 11621274378 | $0.22 | Shop at ECS Tuning | |||||
| 06 | Gasket w/heat prot.shield asbestosfree | 2 | 11621723655 | $17.13 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 1 | 18111728364 | $16.50 | Shop at ECS Tuning | |||||
| 08 | Stud bolt | M10X35 | 3 | 09/1987 | 11621708999 | $2.20 | Shop at ECS Tuning | |||
| 09 | Hex nut | M10 | 3 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
