Emission control for BMW 3 Series E30 320i (1990)

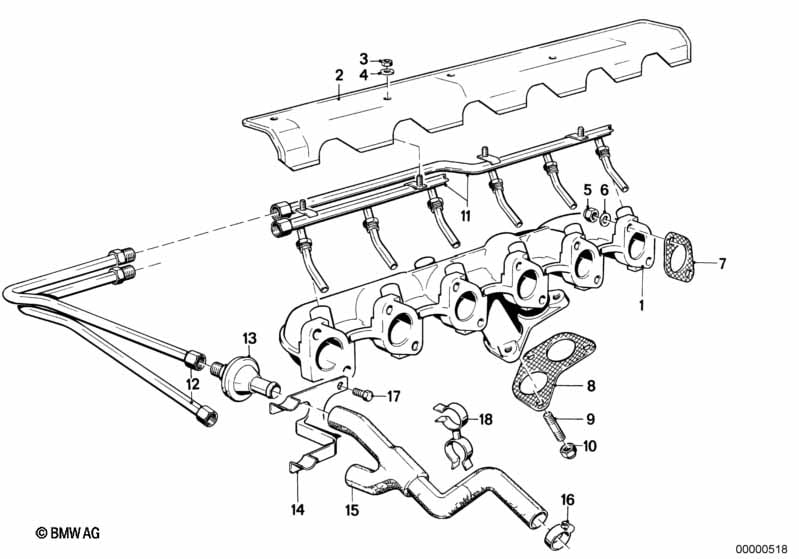

This Emission control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version Switzerland or National version Australia or National version sweden |
L804A=Yes L810A=Yes V010A=Yes |
||||||||
| 01 | Exhaust manifold | 1 | 11751279942 | $434.19 | ENDED | Shop at ECS Tuning | ||||
| 02 | Asbesto-free protective cover | 1 | 11759068650 | ENDED | Shop at ECS Tuning | |||||
| 04 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Hex nut wiht flange | M8 | X | 18307620549 | Shop at ECS Tuning | |||||
| 06 | Washer | X | 11621274378 | $0.22 | Shop at ECS Tuning | |||||
| 07 | Gasket Asbestos Free | 6 | 11621723852 | ENDED | Shop at ECS Tuning | |||||
| 08 | Gasket Asbestos Free | 1 | 18111728363 | $17.87 | Shop at ECS Tuning | |||||
| 09 | Stud bolt | M10X35 | 3 | 11621711671 | $3.05 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M10 | 3 | 18301737774 | $1.65 | Shop at ECS Tuning | ||||
| 11 | Pipe | 1 | 11721285109 | ENDED | Shop at ECS Tuning | |||||
| 12 | Pipe | 1 | 11721285169 | ENDED | Shop at ECS Tuning | |||||
| 13 | Air valve | 2 | 11721279940 | $72.79 | ENDED | Shop at ECS Tuning | ||||
| 15 | Hose | 1 | 11721286755 | ENDED | Shop at ECS Tuning | |||||
| 16 | Hose clamp | L18-24 | 2 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 17 | Hex bolt with washer | M6X10-Z1 | 1 | 07119915057 | $3.05 | Shop at ECS Tuning | ||||
| 18 | Bracket, hose line | 1 | 11721285185 | $1.90 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
