Exhaust manifold for BMW 6 Series E24 635CSi (1989)

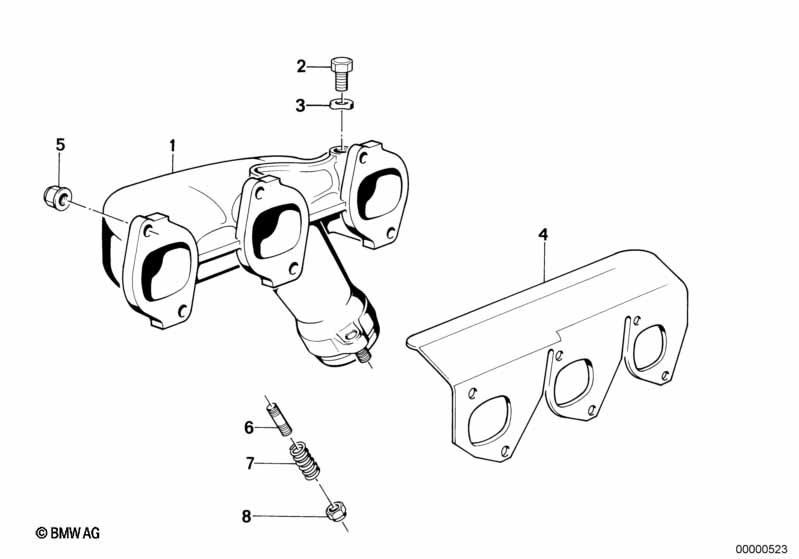

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | 2 | 06/1987 | 11621289275 | $267.59 | ENDED | Shop at ECS Tuning | |||
| 02 | Screw plug | CM8X1 | 2 | 06/1987 | 07119919210 | $2.24 | Shop at ECS Tuning | |||
| 03 | Gasket ring | A8X11,5-AL | 2 | 06/1987 | 07119963041 | $0.57 | Shop at ECS Tuning | |||
| 04 | Gasket w/heat prot.shield asbestosfree | 2 | 06/1987 | 11621723656 | $39.83 | ENDED | Shop at ECS Tuning | |||
| 05 | Hex nut wiht flange | M8 | X | 06/1987 | 18307620549 | Shop at ECS Tuning | ||||
| 06 | Stud bolt | M8X95 | 4 | 06/1987 | 11621716884 | $5.60 | Shop at ECS Tuning | |||
| 07 | Compression spring | 4 | 06/1987 | 11761716668 | $5.81 | Shop at ECS Tuning | ||||
| 08 | Hex nut wiht flange | M8 | 4 | 06/1987 | 18307620549 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
