Exhaust manifold for BMW 8 Series E31 850Ci (1991)

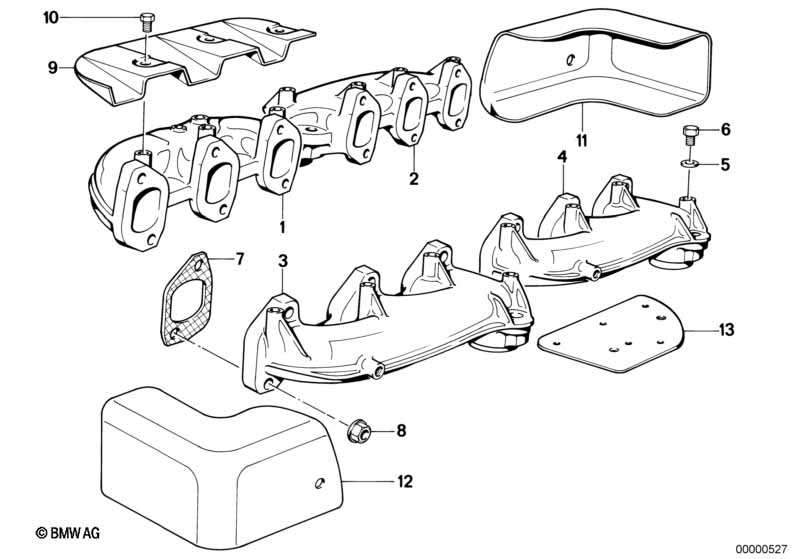

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO CYLINDER 1-6 | ||||||||||
| 01 | Exhaust manifold | 1 | 11621708705 | $350.42 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan ONLY APPLIES TO CYLINDER 1-6 |
L807A=Yes |
|||||||||
| 01 | Exhaust manifold | 1 | 11621708705 | $350.42 | ENDED | Shop at ECS Tuning | ||||
| ONLY APPLIES TO CYLINDER 1-6 | ||||||||||
| 02 | Exhaust manifold | 1 | 11621708995 | $925.23 | Shop at ECS Tuning | |||||
| For vehicles with National version japan ONLY APPLIES TO CYLINDER 1-6 |
L807A=Yes |
|||||||||
| 02 | Exhaust manifold | 1 | 11621708995 | $925.23 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CYLINDER 7-12 | ||||||||||
| 03 | Exhaust manifold | 1 | 11621708995 | $925.23 | Shop at ECS Tuning | |||||
| For vehicles with National version japan ONLY APPLIES TO CYLINDER 7-12 |
L807A=Yes |
|||||||||
| 03 | Exhaust manifold | 1 | 11621708995 | $925.23 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO CYLINDER 7-12 | ||||||||||
| 04 | Exhaust manifold | 1 | 11621708705 | $350.42 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version japan ONLY APPLIES TO CYLINDER 7-12 |
L807A=Yes |
|||||||||
| 04 | Exhaust manifold | 1 | 11621708705 | $350.42 | ENDED | Shop at ECS Tuning | ||||
| 05 | Gasket ring | D8X11,5-CU | 8 | 07119963045 | $0.47 | Shop at ECS Tuning | ||||
| 06 | Screw plug | CM8X1 | 8 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 07 | Gasket | X | 11621708966 | Shop at ECS Tuning | ||||||
| 08 | Collar nut | M8 | X | 18107523805 | $2.55 | Shop at ECS Tuning | ||||
| 09 | Protective COVER | 4 | 11621708964 | $106.83 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X10 | X | 11621723412 | $0.37 | Shop at ECS Tuning | ||||
| 11 | Protective COVER | 1 | 11621716377 | $29.98 | Shop at ECS Tuning | |||||
| 12 | Protective COVER | 1 | 11621716377 | $29.98 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 12 | Protective COVER | 1 | 11621716377 | $29.98 | Shop at ECS Tuning | |||||
| 13 | Protective COVER | 1 | 11621716356 | $20.72 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
