Exhaust manifold for BMW 5 Series E34 M5 (1995)

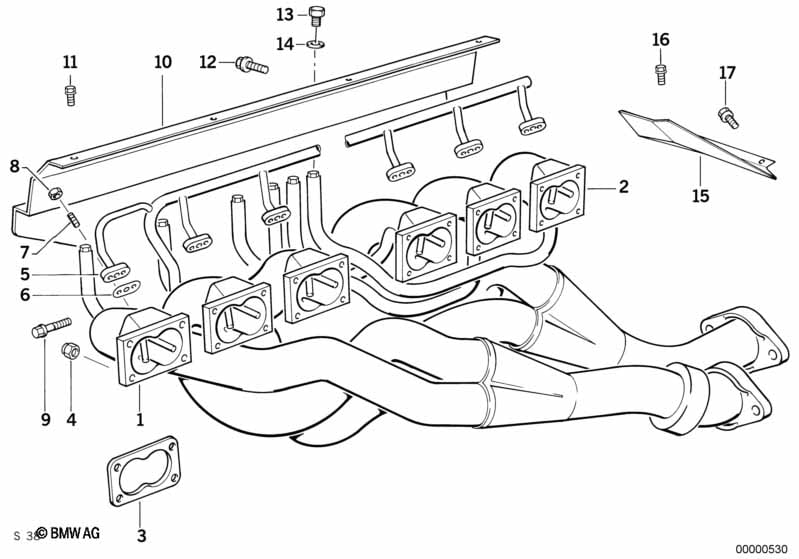

This Exhaust manifold technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Exhaust manifold | ZYL.1-3 | 1 | 11621317080 | $2758.67 | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland or National version japan or National version Austria |
L804A=Yes L807A=Yes V013A=Yes |
|||||||||
| 01 | Exhaust manifold | ZYL.1-3 | 1 | 11621312726 | $2555.64 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Stud bolt | M6X28 10.9 | 1 | 11621315401 | $5.95 | Shop at ECS Tuning | ||||
| 02 | Exhaust manifold | ZYL.4-6 | 1 | 11621317082 | $2555.64 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with National version Switzerland or National version japan or National version Austria |
L804A=Yes L807A=Yes V013A=Yes |
|||||||||
| 02 | Exhaust manifold | ZYL.4-6 | 1 | 11621312727 | $2555.64 | ENDED, +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Stud bolt | M6X28 10.9 | 6 | 11621315401 | $5.95 | Shop at ECS Tuning | ||||
| 03 | Gasket Asbestos Free | 6 | 11621312992 | Shop at ECS Tuning | ||||||
| 03 | Gasket Asbestos Free | 6 | 11621312992 | Shop at ECS Tuning | ||||||
| 04 | Hex nut | M6-SW 9 MM | X | 11621304755 | $0.75 | Shop at ECS Tuning | ||||
| 05 | Air intake tube | 1 | 11721315435 | $859.32 | Shop at ECS Tuning | |||||
| 06 | Gasket Asbestos Free | 6 | 11721312800 | $6.08 | Shop at ECS Tuning | |||||
| 07 | Stud bolt | M6X28 10.9 | 6 | 11621315401 | $5.95 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M6-SW 9 MM | X | 11621304755 | $0.75 | Shop at ECS Tuning | ||||
| 10 | Protective COVER | 1 | 11621317877 | $288.24 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X12-Z3-2 | 4 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 12 | Hex bolt with washer | M10X16-Z3 | 1 | 07119913948 | $0.65 | Shop at ECS Tuning | ||||
| 13 | Screw plug | CM8X1 | 6 | 07119919210 | $2.24 | Shop at ECS Tuning | ||||
| 14 | Gasket ring | A8X11,5-AL | 6 | 07119963041 | $0.57 | Shop at ECS Tuning | ||||
| 15 | Protective COVER | 1 | 11721317881 | $157.36 | ENDED | Shop at ECS Tuning | ||||
| 16 | Hex bolt with washer | M6X12-Z3-2 | 2 | 07119915014 | $3.47 | ENDED | Shop at ECS Tuning | |||
| 17 | Hex bolt with washer | M8X16 | 1 | 07119905528 | $0.62 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 M5 Exhaust manifold?
- This technical diagram illustrates the Exhaust manifold within the Engine group for the 5 Series E34 M5 produced during 1995. It provides a detailed exploded view of the components, identifying key parts such as the Exhaust manifold (Part #11621317080).
- Which models use the hardware listed in this Exhaust manifold?
- The hardware and components featured in the Exhaust manifold are specific to the 5 Series E34 M5 produced during 1995. These technical specifications ensure that parts like the Exhaust manifold (11621317080) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Exhaust manifold assembly?
- Each item in the Exhaust manifold corresponds to the numbered list below the illustration. For the 5 Series E34 M5, you can identify the Exhaust manifold by locating its position on the schematic, which then links to the official BMW part number 11621317080 for the Engine section.
