Lubrication system-Oil filter for BMW 8 Series E31 850Ci (1991)

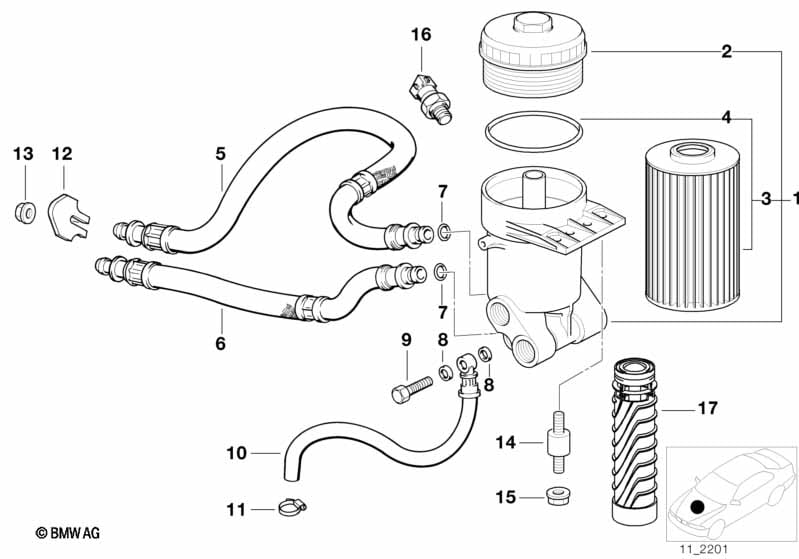

This Lubrication system-Oil filter technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil filter without oil cooler connection | 1 | 11427511169 | $343.83 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| 01 | Oil filter with oil cooler connection | 1 | 11427511171 | $343.83 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Plate | 1 | 11421437552 | $0.65 | Shop at ECS Tuning | |||||
| For vehicles with Hot-climate version |
S823A=Yes |
|||||||||
| 01 | Oil filter with oil cooler connection | 1 | 11427511171 | $343.83 | ENDED, +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Plate | 1 | 11421437552 | $0.65 | Shop at ECS Tuning | |||||
| 02 | Oil filter cover | 1 | 11421736674 | $26.45 | Shop at ECS Tuning | |||||
| 03 | Oil filter | 1 | 09/1995 | 11427510717 | $19.71 | Shop at ECS Tuning | ||||
| see service information SIT 00 15 97 (229) "Supporting Dome - Oil-filter insert" |
||||||||||
| 04 | O-ring | 91X4 | 1 | 11421741000 | $5.04 | Shop at ECS Tuning | ||||
| 05 | Pressure hose assy inlet | 1 | 11421733406 | $92.10 | ENDED | Shop at ECS Tuning | ||||
| 06 | Pressure hose assy outlet | 1 | 11421733407 | $95.18 | ENDED | Shop at ECS Tuning | ||||
| 07 | O-ring | 23,0X3,0 | 4 | 11421702916 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Gasket ring | A14X20-ALMG | 2 | 32411129986 | $0.15 | Shop at ECS Tuning | ||||
| 09 | Hollow bolt | M14X1,5X26 | 1 | 32416852469 | Shop at ECS Tuning | |||||
| 10 | Oil pipe outlet | 1 | 11421731012 | $47.32 | Shop at ECS Tuning | |||||
| 11 | Hose clamp | L15-19 | 1 | 07129952107 | $0.93 | Shop at ECS Tuning | ||||
| 12 | Plate | 2 | 11421437552 | $0.65 | Shop at ECS Tuning | |||||
| 13 | Self-locking collar nut | M8-8 ZNS3 | 2 | 31316769731 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Rubber Mounting | 2 | 11421436982 | $7.63 | Shop at ECS Tuning | |||||
| 15 | Hex nut with plate | M6 | 2 | 07147134319 | $1.05 | Shop at ECS Tuning | ||||
| 16 | Oil pressure switch | 1 | 12611715504 | $25.11 | Shop at ECS Tuning | |||||
| FOR MODIFICATION ONLY | ||||||||||
| 17 | Supporting dome | 1 | 09/1995 | 11421745392 | $16.72 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
