Valve Timing Gear - Cam Shaft for BMW 8 Series E31 850Ci (1991)

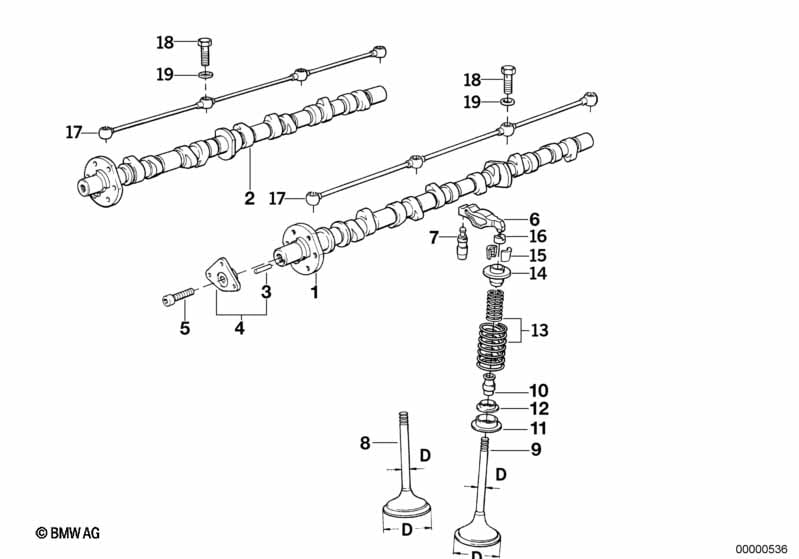

This Valve Timing Gear - Cam Shaft technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Camshaft leftt | ZYL.7-12 | 1 | 11311715832 | $1629.16 | ENDED | Shop at ECS Tuning | |||
| 02 | Camshaft right | ZYL.1-6 | 1 | 11311715829 | $1629.16 | Shop at ECS Tuning | ||||
| 03 | Dowel pin | 3X8 | 2 | 07119942161 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Adapter | 2 | 11311718733 | $46.40 | Shop at ECS Tuning | |||||
| 05 | Fillister-head screw | M8X25 | 2 | 07119919979 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Rocker arm | X | 11331709063 | $55.08 | Shop at ECS Tuning | |||||
| 07 | Alignment element | X | 11331712010 | $32.50 | Shop at ECS Tuning | |||||
| 08 | Intake valve | 42,0/6,94MM | X | 11341727358 | $32.42 | Shop at ECS Tuning | ||||
| 08 | Intake valve w.oversize VA.system +0,1mm | 42,0/7,10MM | X | 11341727359 | $44.76 | Shop at ECS Tuning | ||||
| 08 | Intake valve w.oversize VA.system +0,2mm | 42,0/7,20MM | X | 11341727360 | $86.49 | Shop at ECS Tuning | ||||
| 09 | Exhaust valve | 36,0/6,96MM | X | 04/1990 | 11341717878 | $44.40 | Shop at ECS Tuning | |||
| 09 | Exh. valve w.oversize VA.system +0,1mm | 36,0/7,10MM | X | 04/1990 | 11341727353 | $177.20 | Shop at ECS Tuning | |||
| 09 | Exhaust valve w.oversize VA.system+0,2mm | 36,0/7,20MM | X | 04/1990 | 11341727354 | $177.20 | Shop at ECS Tuning | |||
| 10 | Repair kit valve seal ring | 2 | 11349059172 | $46.94 | Shop at ECS Tuning | |||||
| 11 | Spring pocket | X | 11341718468 | $3.77 | Shop at ECS Tuning | |||||
| 12 | Spring pocket | X | 11341720405 | $3.77 | ENDED | Shop at ECS Tuning | ||||
| 13 | Valve spring | X | 11341709604 | $7.88 | Shop at ECS Tuning | |||||
| 13 | Valve spring inner | X | 11341709605 | $7.88 | Shop at ECS Tuning | |||||
| 14 | Upper spring plate | X | 11341709607 | $3.77 | Shop at ECS Tuning | |||||
| 15 | Valve collet | X | 11341307136 | $1.08 | Shop at ECS Tuning | |||||
| 16 | Thrust adapter | X | 11331727202 | $4.70 | Shop at ECS Tuning | |||||
| 17 | Oil pipe | 2 | 11421718515 | $69.99 | Shop at ECS Tuning | |||||
| 18 | Hollow bolt | 8 | 11421738621 | $6.01 | Shop at ECS Tuning | |||||
| 19 | Gasket ring | A8X11,5-AL | X | 07119963041 | $0.57 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
