Cooling system pipe for BMW 8 Series E31 850Ci (1991)

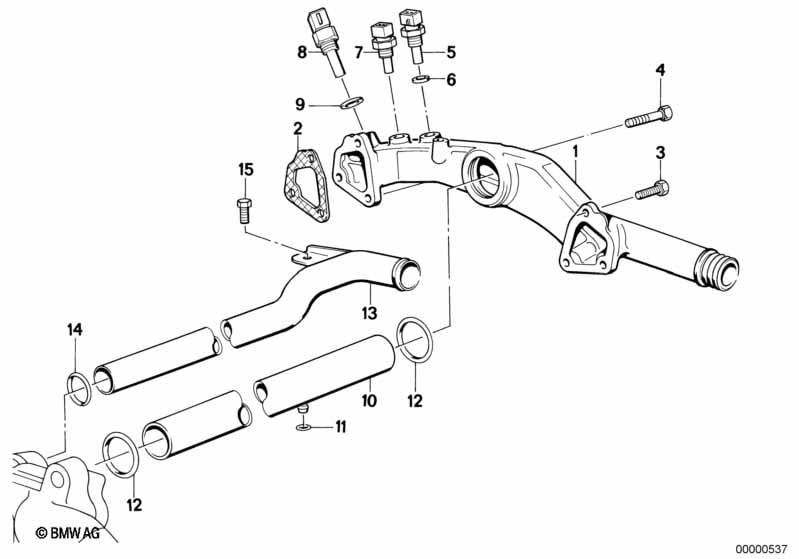

This Cooling system pipe technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cooling system accumulator | 1 | 11531736641 | $166.12 | ENDED | Shop at ECS Tuning | ||||
| 02 | Gasket Asbestos Free | 2 | 11531725788 | $6.02 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M6X30-Z3 | 5 | 07119913980 | $0.60 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Temperature sensor, water | 3-POL-2500-OHM | 1 | 13621707366 | $71.05 | Shop at ECS Tuning | ||||

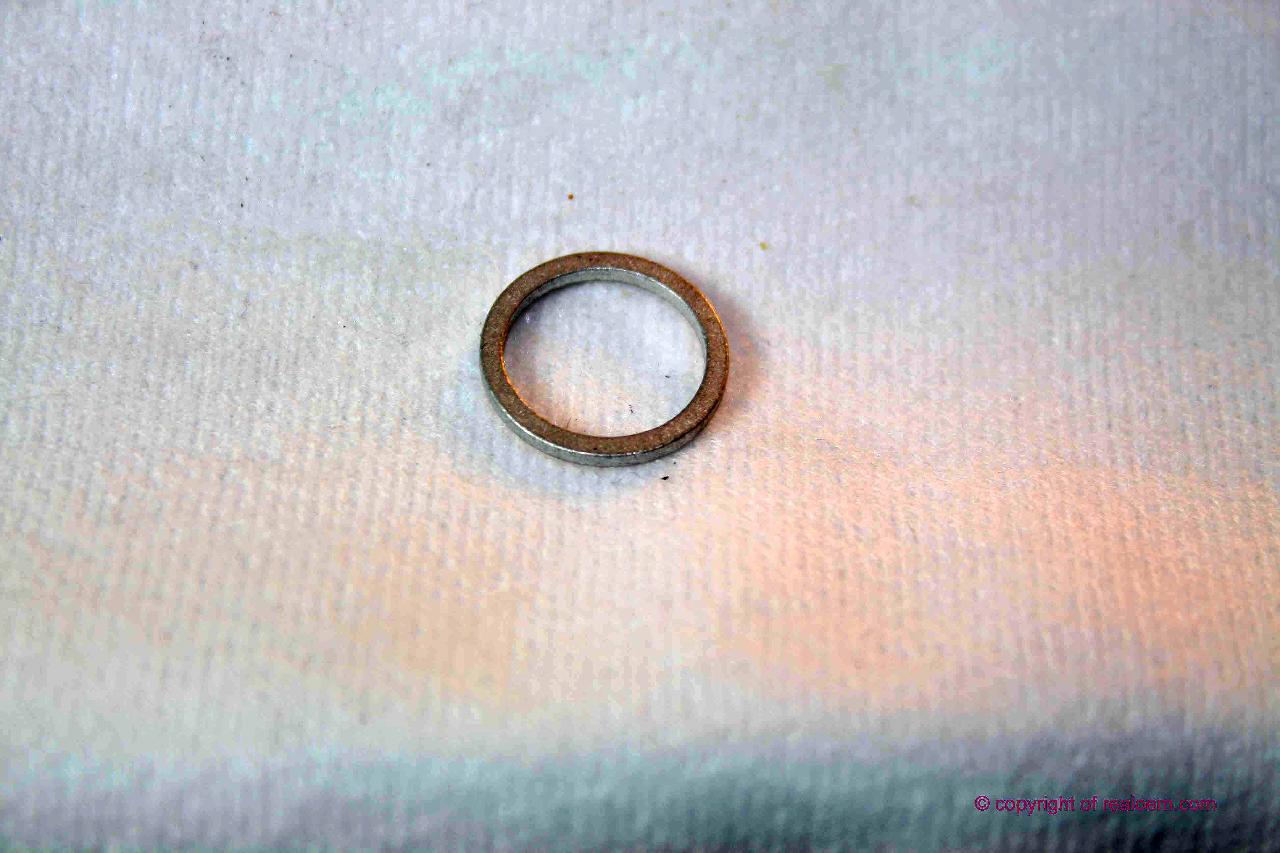

| 06 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| 07 | Temperature sensor, water | M14X1,5 | 1 | 12621288158 | $40.02 | Shop at ECS Tuning | ||||
| 08 | Engine coolant temp sensor | 2-POL | 1 | 12621747281 | $31.72 | ENDED | Shop at ECS Tuning | |||
| 08 | Engine coolant temp sensor | 2-POL | 1 | 12621710535 | $41.29 | Shop at ECS Tuning | ||||
| 09 | Gasket ring | A14X18-AL | 2 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Pipe | 1 | 11531715843 | $59.75 | Shop at ECS Tuning | |||||

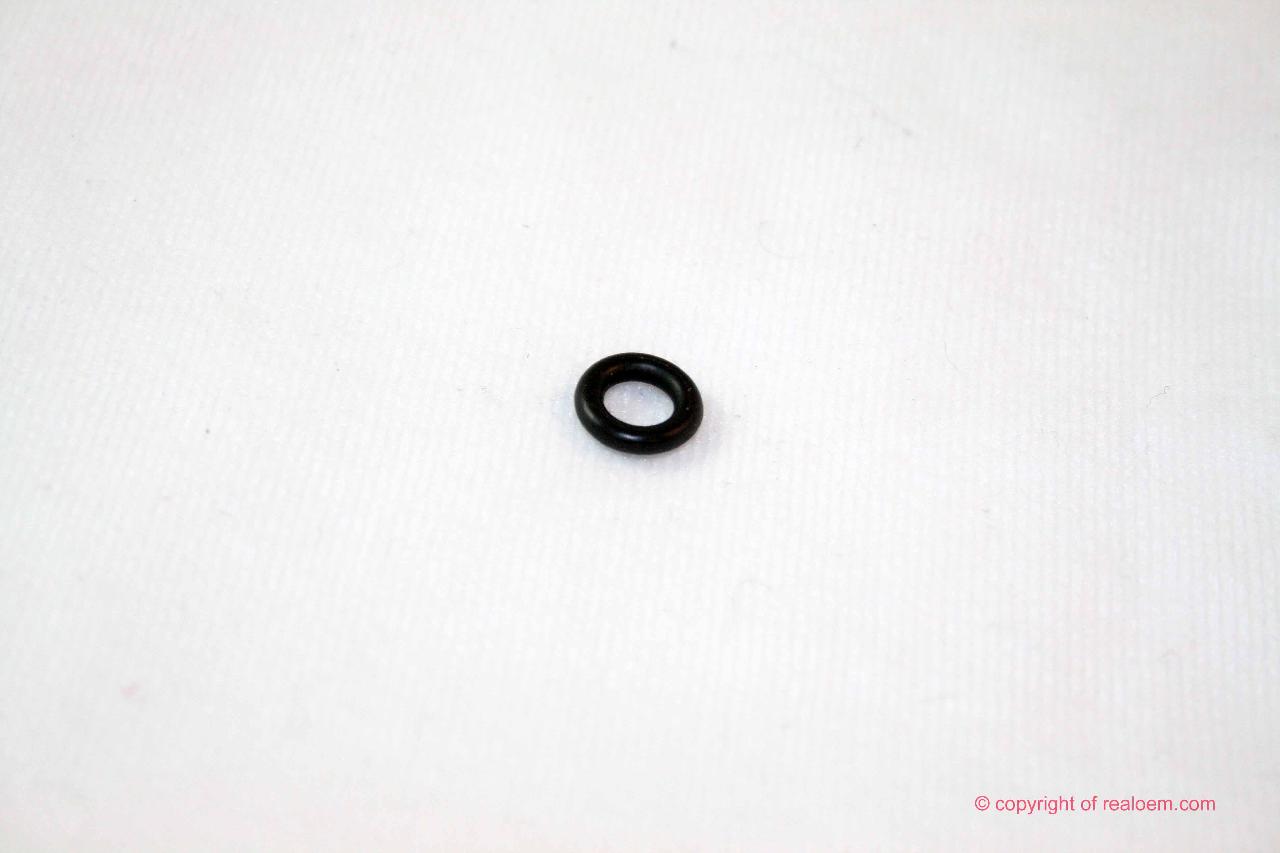

| 11 | O-ring | 6,0X2,5MM | 1 | 11537501776 | $1.12 | ENDED | Shop at ECS Tuning | |||

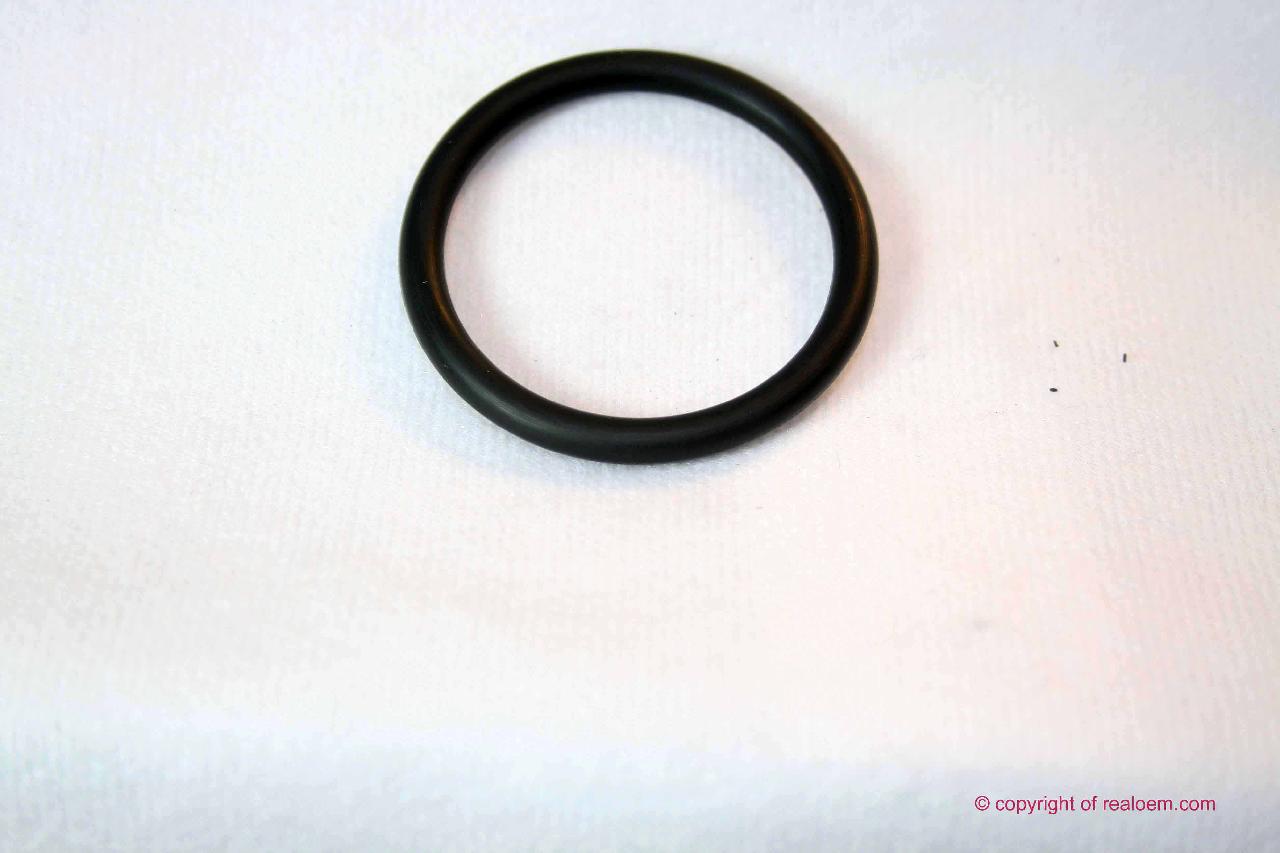

| 12 | O-ring | 34,2X4,0MM | 2 | 11531710048 | $2.69 | Shop at ECS Tuning | ||||
| 13 | Pipe | 1 | 11531733350 | $163.58 | Shop at ECS Tuning | |||||

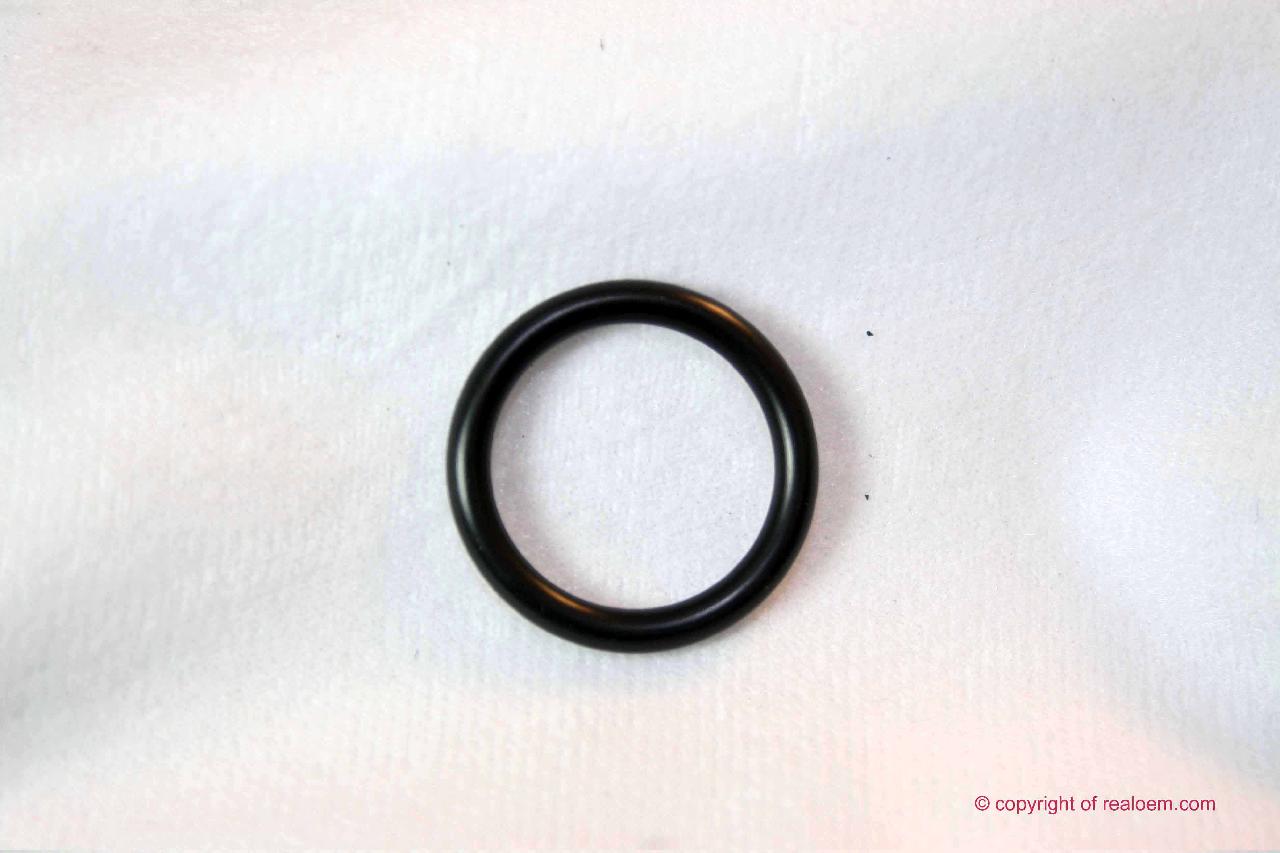

| 14 | O-ring | 19,5X3,0MM | 1 | 11531710055 | $1.25 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X12-8.8-ZNNIV | 1 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Cooling system pipe?
- This technical diagram illustrates the Cooling system pipe within the Engine group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Cooling system accumulator (Part #11531736641).
- Which models use the hardware listed in this Cooling system pipe?
- The hardware and components featured in the Cooling system pipe are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the Cooling system accumulator (11531736641) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system pipe assembly?
- Each item in the Cooling system pipe corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Cooling system accumulator by locating its position on the schematic, which then links to the official BMW part number 11531736641 for the Engine section.
