Cooling System Water Hoses for BMW 8 Series E31 850Ci (1991)

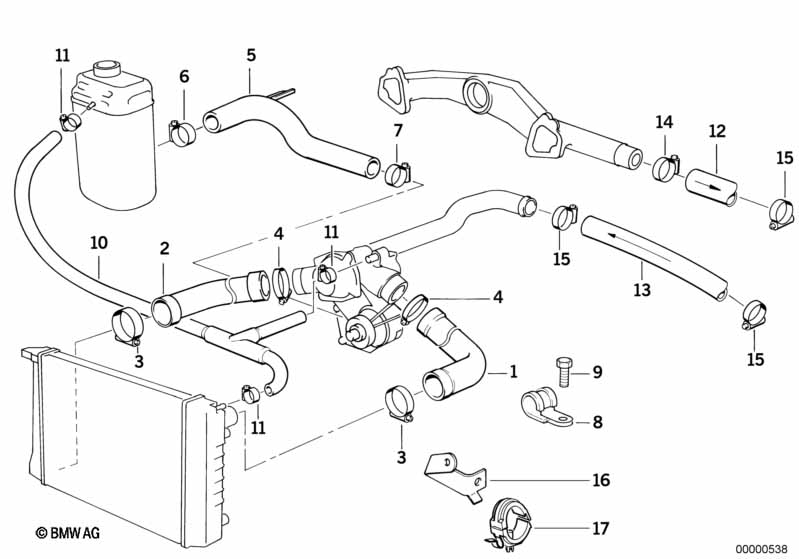

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 11531741410 | $30.20 | SI 110494814 | Shop at ECS Tuning | ||||
| 02 | Water hose | 1 | 11531741411 | $30.20 | SI 110494814 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L=47-54MM | 2 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L42-52 | 2 | 11531708296 | $2.60 | Shop at ECS Tuning | ||||

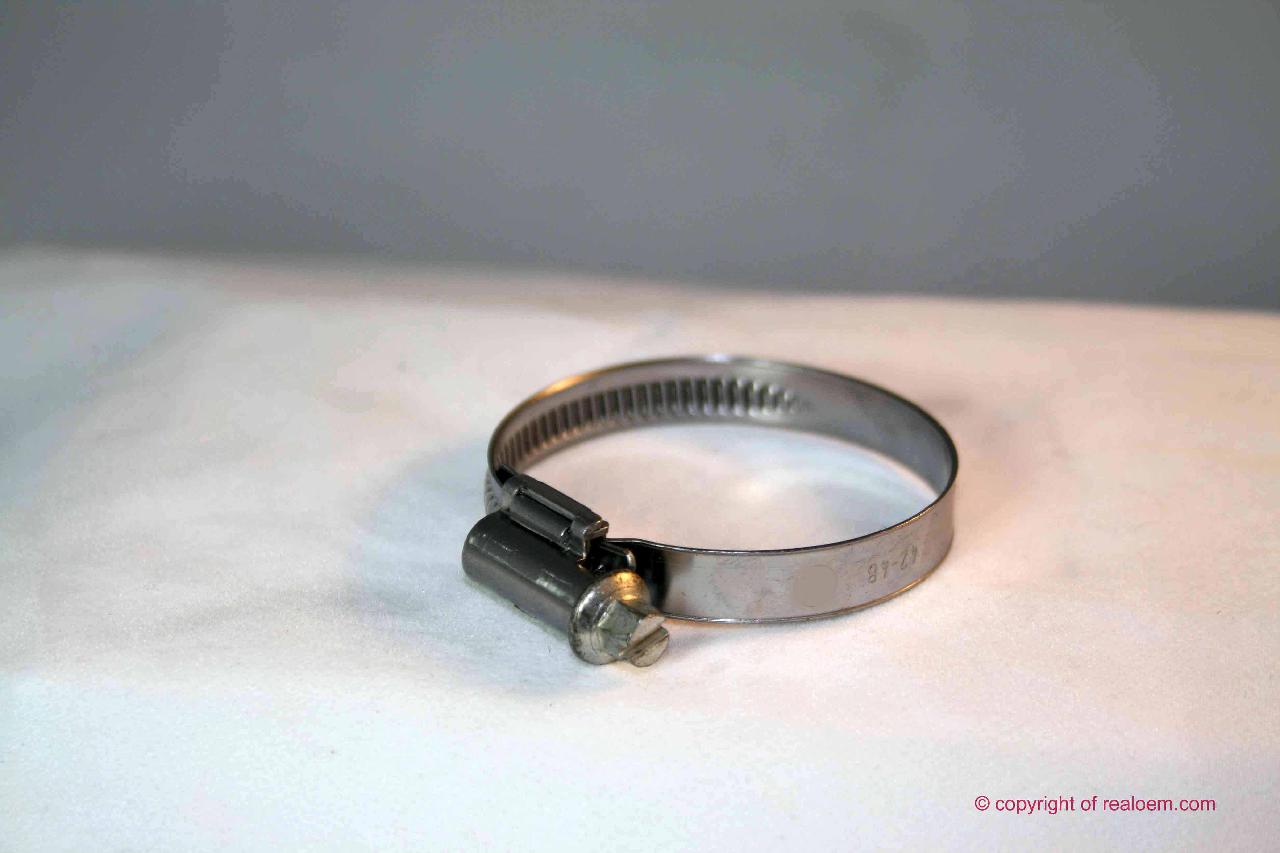

| 04 | Hose clamp | L42-48 | 2 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L42-52 | 2 | 11531708296 | $2.60 | Shop at ECS Tuning | ||||
| 05 | Water hose | 1 | 11531741412 | $18.87 | Shop at ECS Tuning | |||||

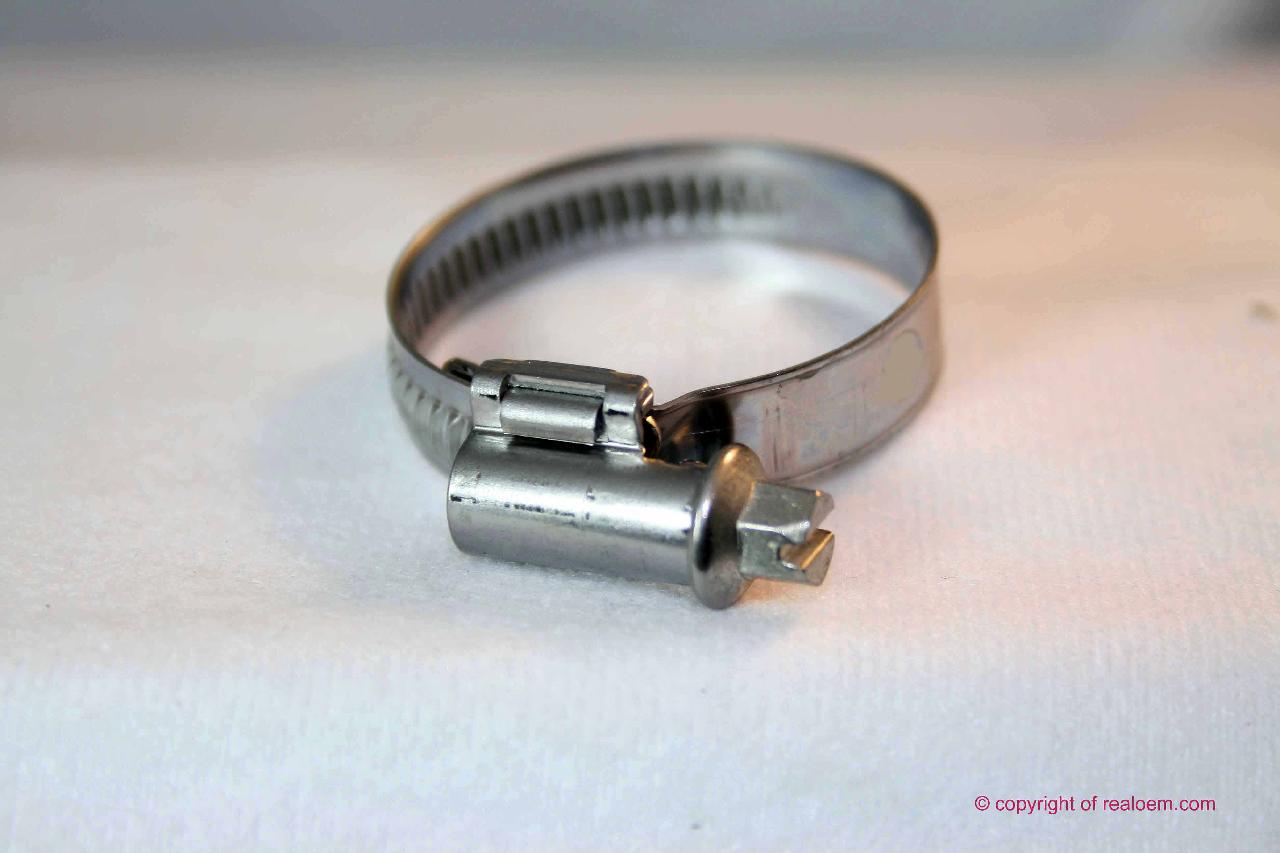

| 06 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||

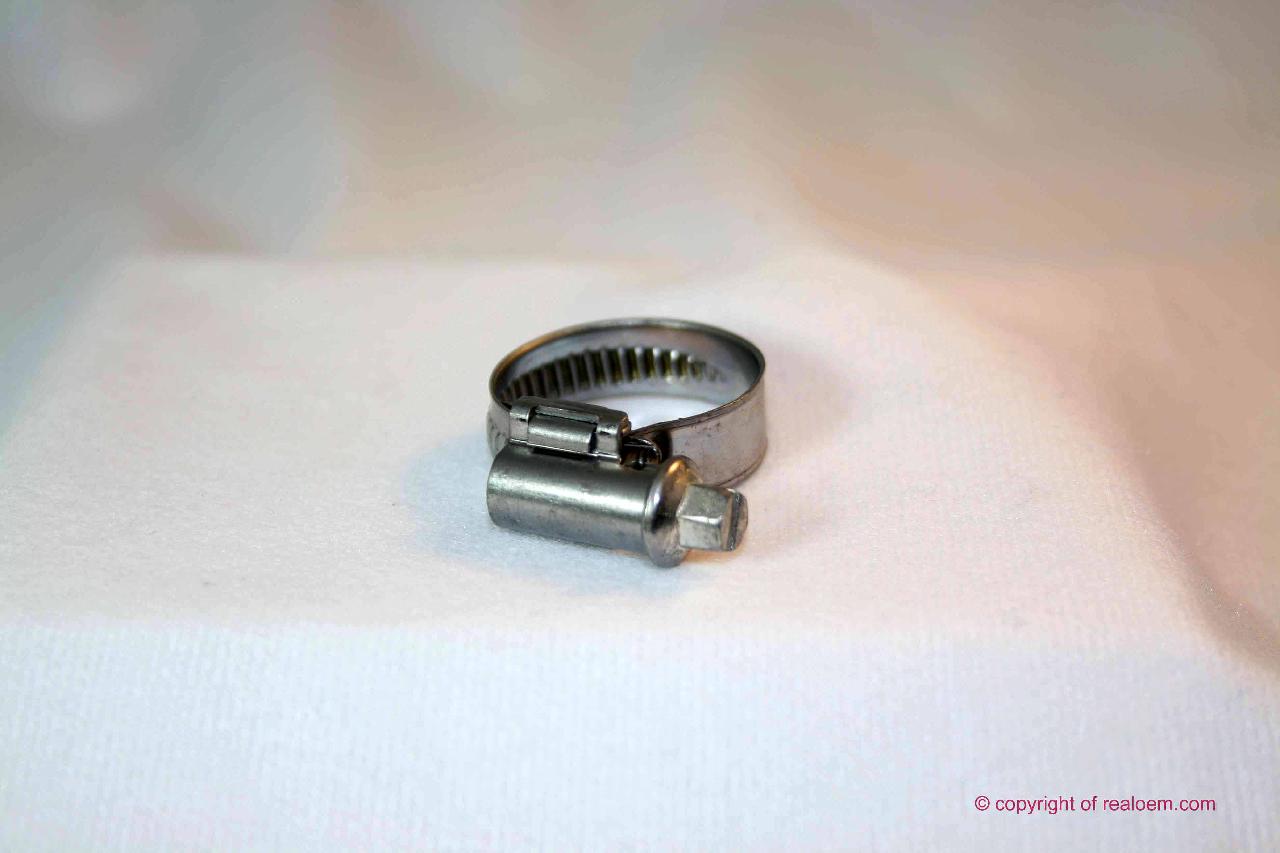

| 07 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 08 | Clamp | D=23/6,4 | 1 | 12521270936 | $1.77 | Shop at ECS Tuning | ||||

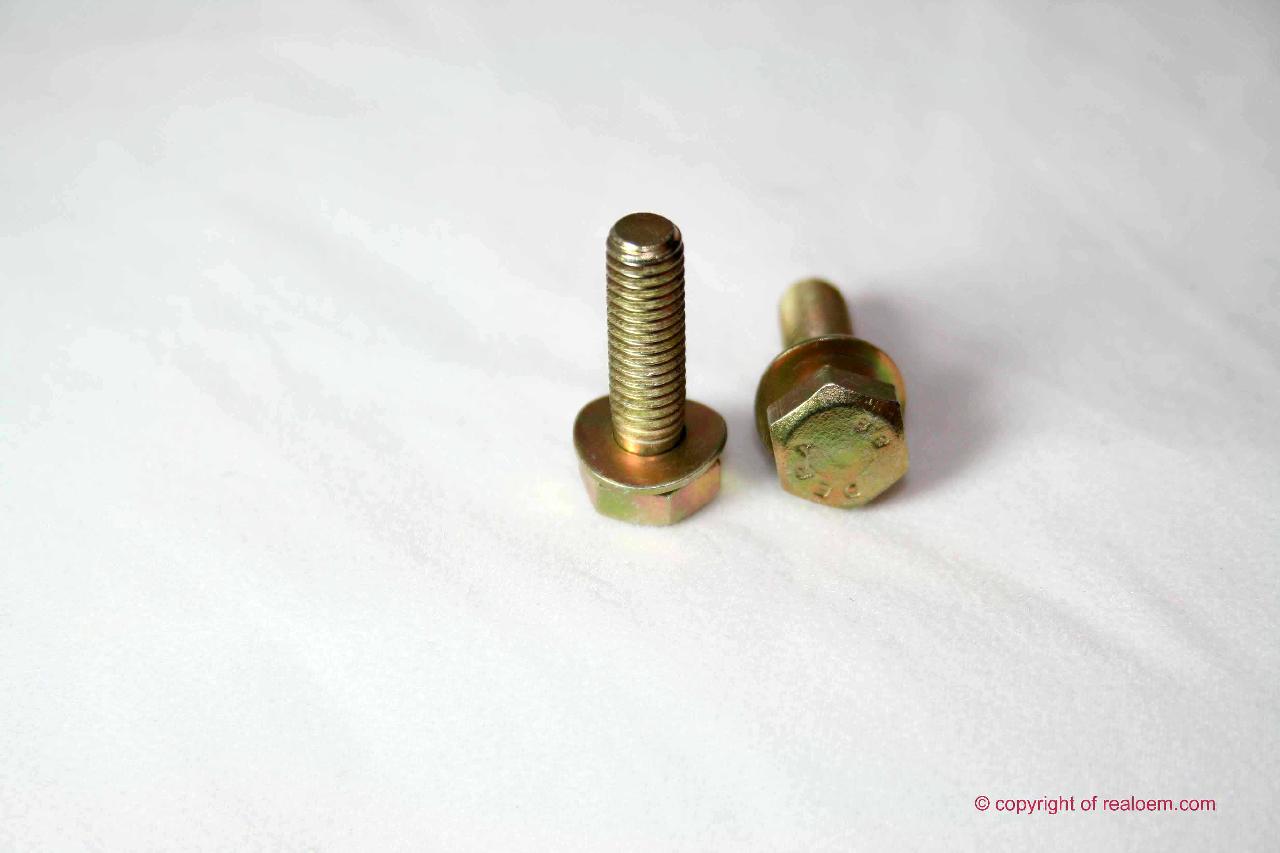

| 09 | Hex bolt with washer | M6X20-Z3 | 1 | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 10 | Vent hose | 1 | 17111702897 | $57.87 | Shop at ECS Tuning | |||||

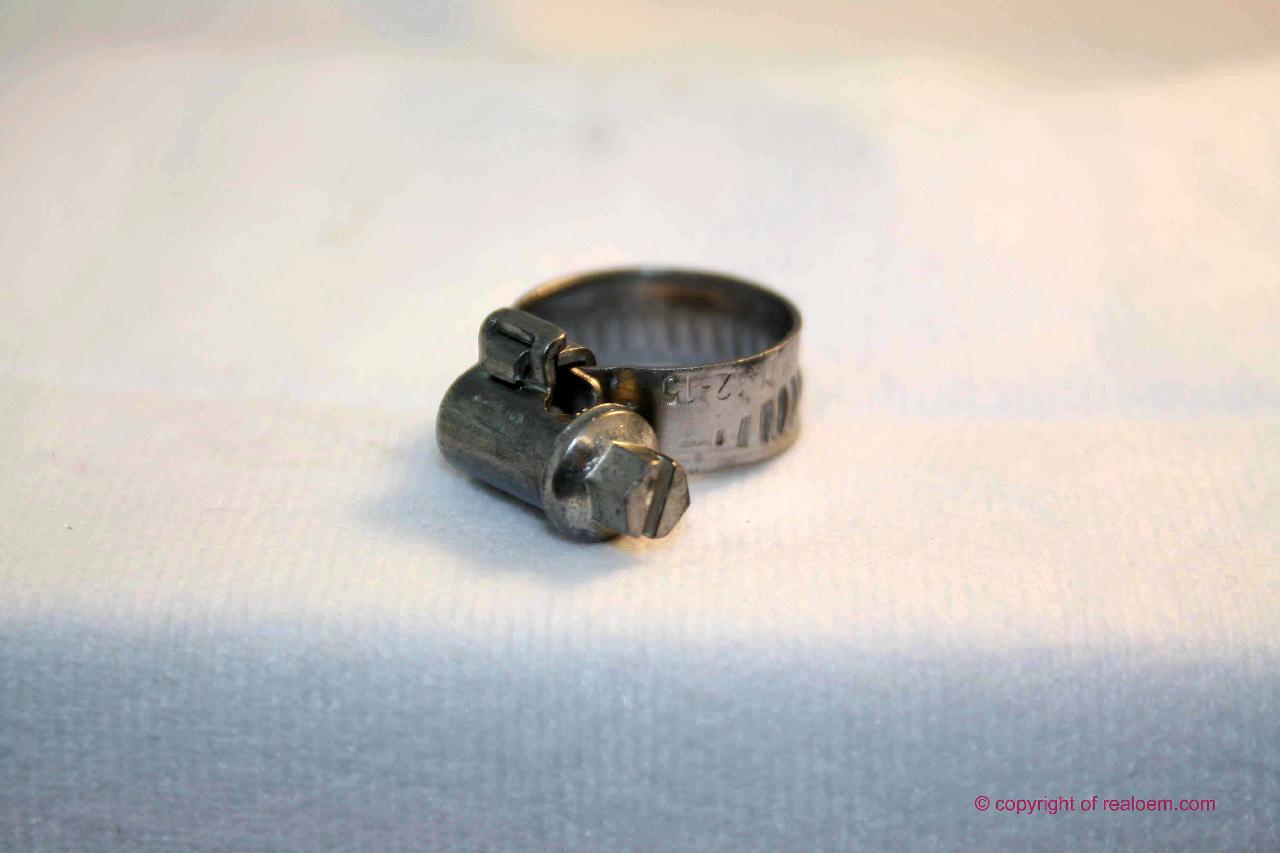

| 11 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 12 | Water hose inlet 1 | 1 | 64211383350 | $16.88 | Shop at ECS Tuning | |||||
| 13 | Hose, inlet | 1 | 64211370807 | $14.43 | Shop at ECS Tuning | |||||
| 14 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||

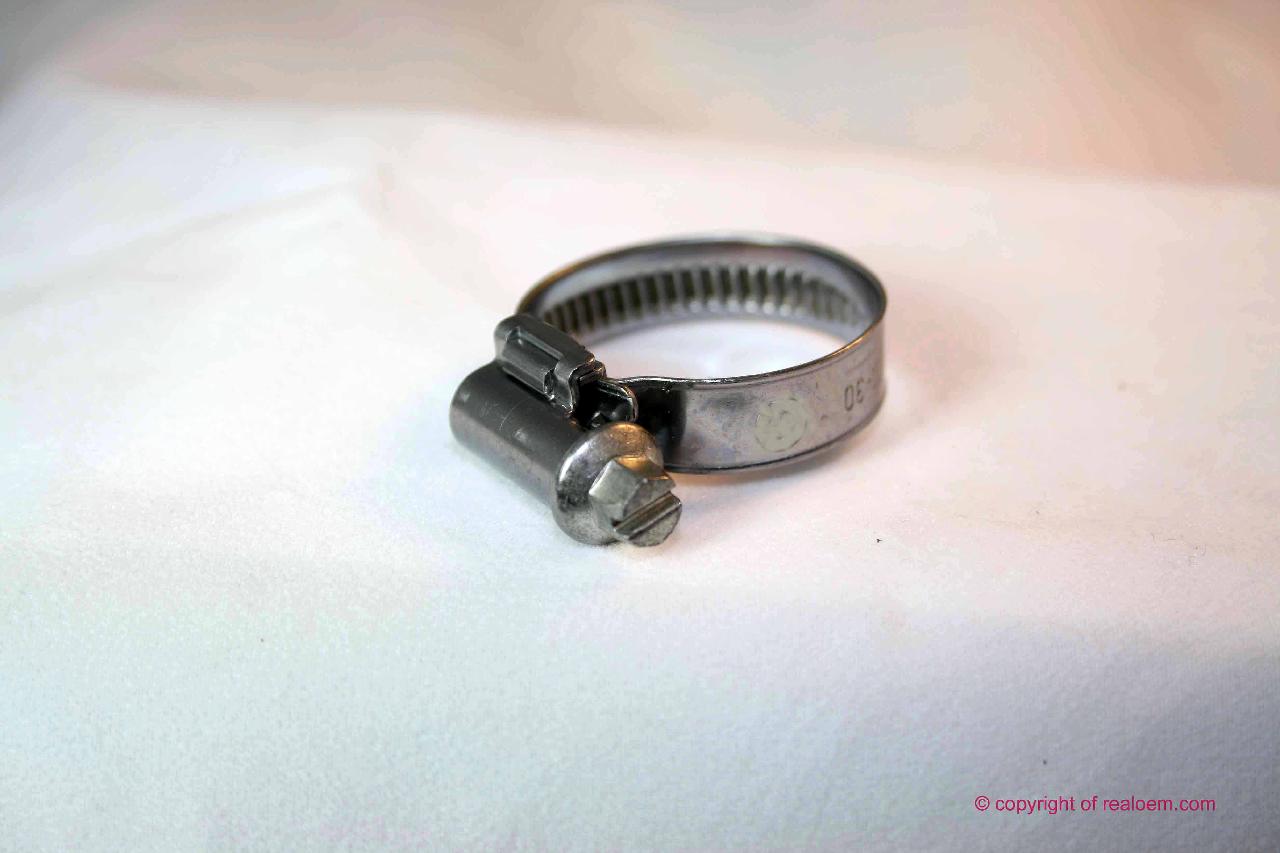

| 15 | Hose clamp | L16-30 | 3 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ADDITIONAL ALTERNATOR | ||||||||||
| 16 | Holder | 1 | 11531736983 | $6.60 | ENDED | Shop at ECS Tuning | ||||

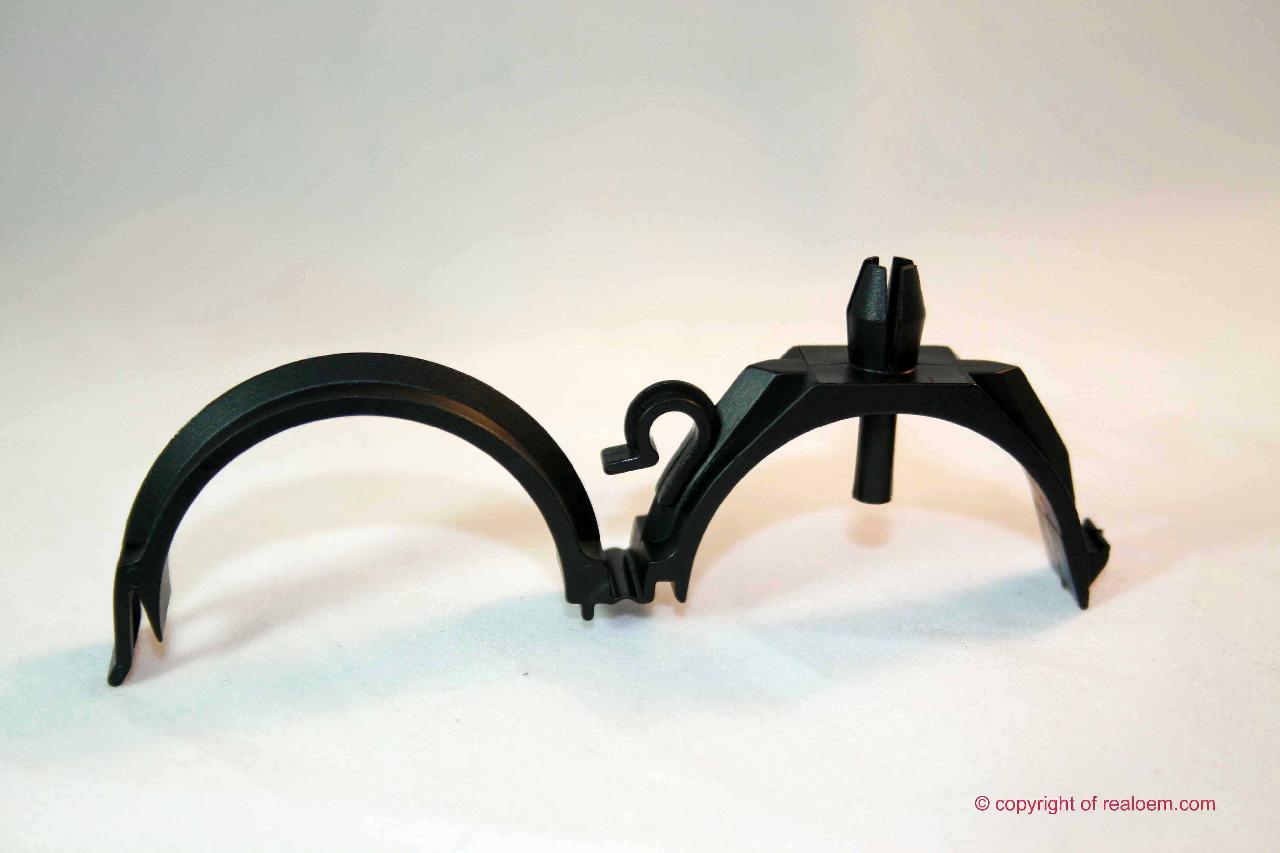

| 17 | Hose clamp | 1 | 11531714433 | $2.39 | Shop at ECS Tuning | |||||
Notes
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Cooling System Water Hoses?
- This technical diagram illustrates the Cooling System Water Hoses within the Engine group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the Water hose (Part #11531741410).
- Which models use the hardware listed in this Cooling System Water Hoses?
- The hardware and components featured in the Cooling System Water Hoses are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the Water hose (11531741410) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling System Water Hoses assembly?
- Each item in the Cooling System Water Hoses corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the Water hose by locating its position on the schematic, which then links to the official BMW part number 11531741410 for the Engine section.
