Cooling system-thermostat housing for BMW 5 Series E34 535i (1993)

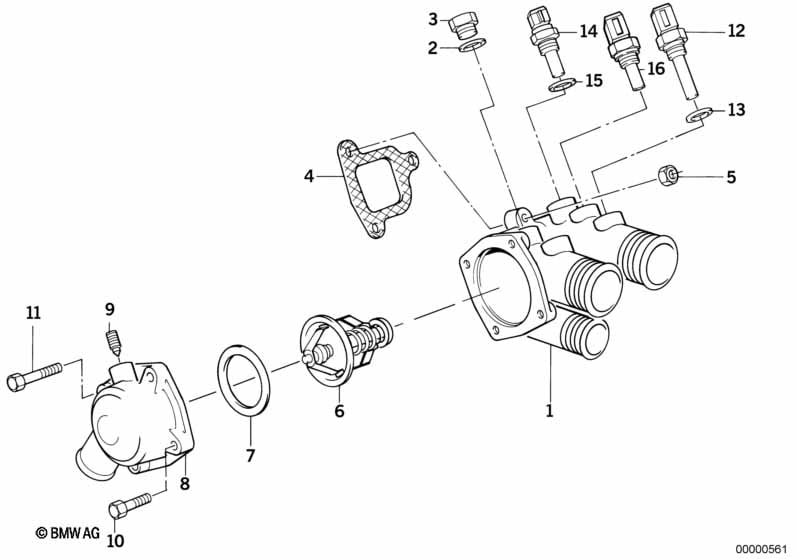

This Cooling system-thermostat housing technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 535i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Thermostat housing | 1 | 11531710959 | $58.65 | Shop at ECS Tuning | |||||
| 02 | Gasket ring | A14X18-CU | X | 07119963201 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Screw plug | AM14X1,5 | 1 | 07119909704 | Shop at ECS Tuning | |||||
| 04 | Gasket Asbestos Free | 1 | 11531722690 | $6.02 | Shop at ECS Tuning | |||||
| 05 | Collar nut | M8-8-SC-ZNNIV | 3 | 07119906089 | $0.32 | Shop at ECS Tuning | ||||
| 06 | Thermostat | 80CEL | 1 | 11531710953 | Shop at ECS Tuning | |||||
| 07 | O-ring | 60X3,5 | 1 | 11531265084 | $2.10 | Shop at ECS Tuning | ||||
| 08 | Cover | 1 | 11531268650 | $36.50 | Shop at ECS Tuning | |||||
| 09 | Vent screw | M8 | 1 | 11531275881 | $3.47 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X25-ZNNIV SI | 2 | 07119905400 | $0.65 | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X70-Z3 | 2 | 07119912288 | $1.42 | Shop at ECS Tuning | ||||
| 12 | Engine coolant temp sensor | 2-POL | 1 | 12621747281 | $31.72 | ENDED | Shop at ECS Tuning | |||
| 12 | Engine coolant temp sensor | 2-POL | 1 | 12621710535 | $41.29 | Shop at ECS Tuning | ||||
| 13 | Gasket ring | A14X18-AL | 1 | 07119963200 | $0.38 | Shop at ECS Tuning | ||||
| 14 | Temperature sensor, water | 1 | 13621709967 | Shop at ECS Tuning | ||||||
| 15 | Gasket ring | A12X15,5 AL | 1 | 07119963130 | $0.09 | Shop at ECS Tuning | ||||
| For vehicles with Electronic engine-power regulation |
=Yes |
|||||||||
| 16 | Temperature sensor, water | M14X1,5 | 1 | 12621288158 | $40.02 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 535i Cooling system-thermostat housing?
- This technical diagram illustrates the Cooling system-thermostat housing within the Engine group for the 5 Series E34 535i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Thermostat housing (Part #11531710959).
- Which models use the hardware listed in this Cooling system-thermostat housing?
- The hardware and components featured in the Cooling system-thermostat housing are specific to the 5 Series E34 535i produced during 1993. These technical specifications ensure that parts like the Thermostat housing (11531710959) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Cooling system-thermostat housing assembly?
- Each item in the Cooling system-thermostat housing corresponds to the numbered list below the illustration. For the 5 Series E34 535i, you can identify the Thermostat housing by locating its position on the schematic, which then links to the official BMW part number 11531710959 for the Engine section.
