Crankshaft with bearing shells for BMW 8 Series E31 850Ci (1991)

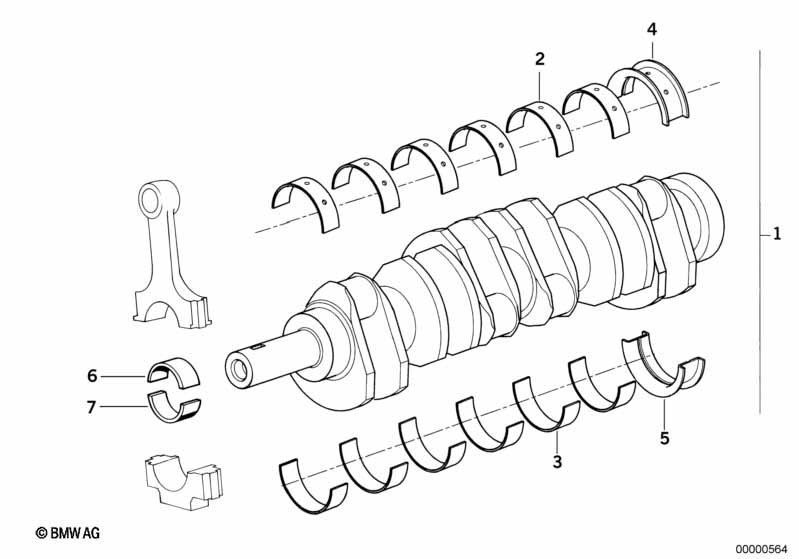

This Crankshaft with bearing shells technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Crankshaft with bearing shells | HUB 75 MM | 1 | 11211731065 | $4049.05 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Bearing shell green | 74,75MM(+0,25) | 6 | 11211288950 | $20.10 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 74,75MM(+0,25) | 6 | 11211288951 | $19.31 | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 74,50MM(+0,50) | 6 | 11211288952 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell green | 74,50MM(+0,50) | 6 | 11211288953 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell white | 74,50MM(+0,50) | 6 | 11211288954 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell yellow | 75,00MM(0) | 6 | 11211288966 | $14.59 | Shop at ECS Tuning | ||||
| 02 | Bearing shell green | 75,00MM(0) | 6 | 11211288967 | $14.59 | Shop at ECS Tuning | ||||
| 02 | Bearing shell white | 75,00MM(0) | 6 | 11211288968 | $11.27 | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 74,75MM(+0,25) | 6 | 11211288969 | $19.31 | Shop at ECS Tuning | ||||
| 02 | Bearing shell yellow | 74,25MM(+0,75) | 6 | 11211720319 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell green | 74,25MM(+0,75) | 6 | 11211720320 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 02 | Bearing shell white | 74,25MM(+0,75) | 6 | 11211720321 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell white | 74,75MM(+0,25) | 6 | 11211288940 | $19.31 | Shop at ECS Tuning | ||||
| 03 | Bearing shell yellow | 74,50MM(+0,50) | 6 | 11211288941 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell green | 74,50MM(+0,50) | 6 | 11211288942 | $20.69 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell white | 74,50MM(+0,50) | 6 | 11211288943 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell yellow | 75,00MM(0) | 6 | 11211288955 | $14.59 | Shop at ECS Tuning | ||||
| 03 | Bearing shell green | 75,00MM(0) | 6 | 11211288956 | $14.59 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell white | 75,00MM(0) | 6 | 11211288957 | $11.27 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell yellow | 74,75MM(+0,25) | 6 | 11211288958 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell green | 74,75MM(+0,25) | 6 | 11211288959 | $19.31 | Shop at ECS Tuning | ||||
| 03 | Bearing shell yellow | 74,25MM(+0,75) | 6 | 11211720323 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell green | 74,25MM(+0,75) | 6 | 11211720324 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 03 | Bearing shell white | 74,25MM(+0,75) | 6 | 11211720325 | $19.31 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell yellow | 75,00MM(0) | 1 | 11211731038 | $35.80 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell green | 75,00MM(0) | 1 | 11211731039 | $35.80 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell white | 75,00MM(0) | 1 | 11211731040 | $36.83 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell yellow | 74,75MM(+0,25) | 1 | 11211731041 | $51.34 | Shop at ECS Tuning | ||||
| 04 | Guide-bearing Shell green | 74,75MM(+0,25) | 1 | 11211731042 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell white | 74,75MM(+0,25) | 1 | 11211731043 | $51.34 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell yellow | 74,50MM(+0,50) | 1 | 11211731045 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell green | 74,50MM(+0,50) | 1 | 11211731046 | $155.12 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell white | 74,50MM(+0,50) | 1 | 11211731047 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell yellow | 74,25MM(+0,75) | 1 | 11211731048 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell green | 74,25MM(+0,75) | 1 | 11211731049 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 04 | Guide-bearing Shell white | 74,25MM(+0,75) | 1 | 11211731050 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell yellow | 75,00MM(0) | 1 | 11211731052 | $35.80 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell green | 75,00MM(0) | 1 | 11211731053 | $35.80 | Shop at ECS Tuning | ||||
| 05 | Guide-bearing Shell white | 75,00MM(0) | 1 | 11211731054 | $36.83 | Shop at ECS Tuning | ||||
| 05 | Guide-bearing Shell yellow | 74,75MM(+0,25) | 1 | 11211731055 | $50.22 | Shop at ECS Tuning | ||||
| 05 | Guide-bearing Shell green | 74,75MM(+0,25) | 1 | 11211731056 | $50.22 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell white | 74,75MM(+0,25) | 1 | 11211731057 | $50.22 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell yellow | 74,50MM(+0,50) | 1 | 11211731059 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell green | 74,50MM(+0,50) | 1 | 11211731060 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell white | 74,50MM(+0,50) | 1 | 11211731061 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell yellow | 74,25MM(+0,75) | 1 | 11211731062 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell green | 74,25MM(+0,75) | 1 | 11211731063 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 05 | Guide-bearing Shell white | 74,25MM(+0,75) | 1 | 11211731064 | $148.43 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing shell, blue | 45,00MM(0) | X | 11241288925 | $16.49 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 44,75MM(+0,25) | X | 11241288927 | $13.49 | Shop at ECS Tuning | ||||
| 06 | Bearing shell, blue | 44,50MM(+0,50) | X | 11241288929 | $11.94 | ENDED | Shop at ECS Tuning | |||
| 06 | Bearing shell, blue | 44,25MM(+0,75) | X | 11241720336 | $11.94 | ENDED | Shop at ECS Tuning | |||
| 07 | Bearing shell, red | 45,00MM(0) | X | 11241288924 | $16.49 | Shop at ECS Tuning | ||||
| 07 | Bearing shell, red | 44,75MM(+0,25) | X | 11241288926 | $13.49 | Shop at ECS Tuning | ||||
| 07 | Bearing shell, red | 44,50MM(+0,50) | X | 11241288928 | $11.94 | ENDED | Shop at ECS Tuning | |||
| 07 | Bearing shell, red | 44,25MM(+0,75) | X | 11241720335 | $11.94 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
