Cooling System Water Hoses for BMW 3 Series E36 318i (1994)

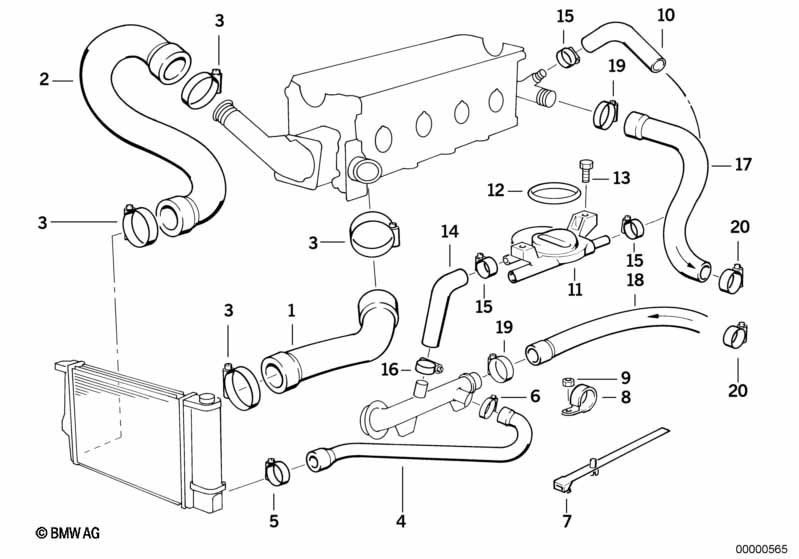

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1994.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 11531727448 | $26.42 | Shop at ECS Tuning | |||||
| 02 | Water hose | 1 | 11531734455 | $26.42 | +core | Shop at ECS Tuning | ||||
| 03 | Hose clamp | L42-48 | 4 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Water hose | 1 | 11531721711 | $30.20 | Shop at ECS Tuning | |||||
| 05 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
| 06 | Hose clamp | L16-30 | 1 | 12/1995 | 64218367179 | $1.07 | Shop at ECS Tuning | |||
| 06 | Hose clamp | L16-30 | 1 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 07 | Cable strap with bracket | Ø=7,7 / L=200 | 2 | 61136924664 | $0.55 | Shop at ECS Tuning | ||||
| 08 | Clamp | D=22/6,4 | 1 | 64531357128 | $1.91 | Shop at ECS Tuning | ||||
| 09 | Hex nut with plate | AM6-8-ZNNIV SI | 1 | 07129904553 | $0.64 | Shop at ECS Tuning | ||||
| 10 | Water hose | 1 | 11531727638 | $15.09 | ENDED | Shop at ECS Tuning | ||||
| 11 | Heater element | 1 | 13541727007 | ENDED | Shop at ECS Tuning | |||||
| 12 | O-ring | 33X1,5 | 1 | 13541721086 | $1.88 | Shop at ECS Tuning | ||||
| 13 | Fillister-head screw | M6X35-Z1 | 2 | 07119919824 | Shop at ECS Tuning | |||||
| 14 | Water hose | 1 | 11531717590 | $15.09 | Shop at ECS Tuning | |||||
| 15 | Hose clamp | L12-15 | 3 | 07129952104 | $1.18 | Shop at ECS Tuning | ||||
| 16 | Hose clamp | L18-24 | 1 | 07129952109 | $1.07 | Shop at ECS Tuning | ||||
| 17 | Hose f engine inlet and water valve | 1 | 64211394295 | $23.13 | Shop at ECS Tuning | |||||
| 18 | Hose f radiator and engine return | 1 | 64211387010 | $13.30 | Shop at ECS Tuning | |||||
| 19 | Hose clamp | L28-33 | 2 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 20 | Hose clamp | L16-30 | 2 | 64218367179 | $1.07 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
