Oil pan/oil level indicator for BMW 5 Series E34 525ix (1995)

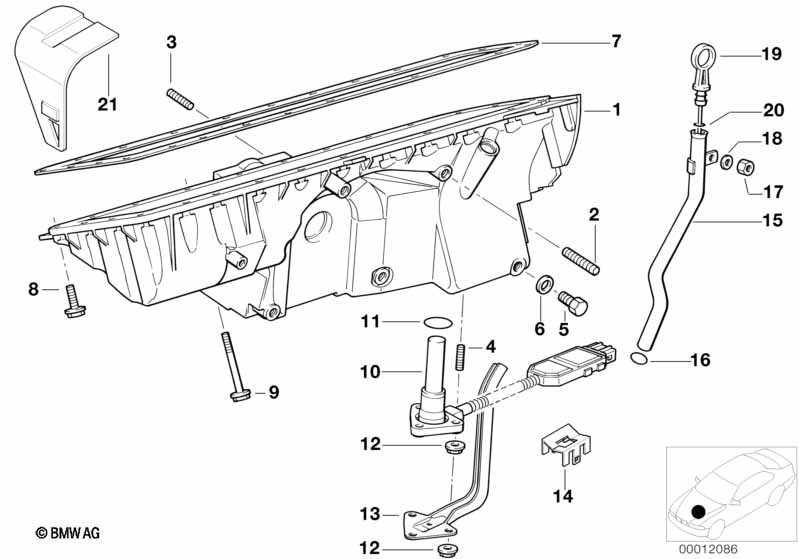

This Oil pan/oil level indicator technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Oil Pan | 1 | 11/1992 | 11131730429 | $914.78 | ENDED | Shop at ECS Tuning | |||
| 02 | Stud bolt | M10X45 | 2 | 11621711670 | ENDED | Shop at ECS Tuning | ||||
| 03 | Stud bolt | M8X35-8.8-PHR | 3 | 07129908130 | $0.82 | Shop at ECS Tuning | ||||
| 05 | Screw plug | M12X16 | 1 | 11137535106 | $3.68 | Shop at ECS Tuning | ||||
| 06 | Gasket ring | A12X17-CU | 1 | 07119963151 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Gasket Steel | 1 | 11131437237 | $48.50 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X95-U1 | 2 | 07119905433 | $3.35 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X60-Z1 | 2 | 07119906124 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X20-Z3 | X | 07119915031 | $0.24 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X90-Z3 | 4 | 07119913002 | Shop at ECS Tuning | |||||
| 15 | Guide tube | 1 | 11431738499 | Shop at ECS Tuning | ||||||
| 16 | O-ring | 14,5X3 | 1 | 11431287541 | $1.19 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M6 | 1 | 64509123157 | $0.70 | Shop at ECS Tuning | ||||
| 18 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 19 | Dipstick | 1 | 11432243911 | Shop at ECS Tuning | ||||||
| 20 | O-ring | 9X2,2 | 2 | 11431717666 | $0.73 | Shop at ECS Tuning | ||||
| 21 | Oil pan cover | 1 | 11131730534 | ENDED | Shop at ECS Tuning |
