Cooling System Water Hoses for BMW 3 Series E36 325tds (1999)

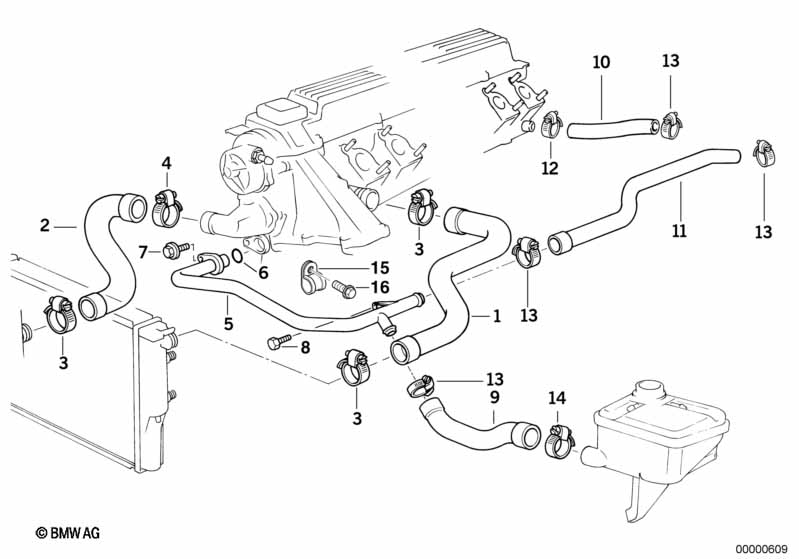

This Cooling System Water Hoses technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 325tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1999.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Water hose | 1 | 11532244752 | Shop at ECS Tuning | ||||||
| 02 | Water hose | 1 | 11532246766 | +core | Shop at ECS Tuning | |||||
| 03 | Hose clamp | L42-48 | 3 | 07129952119 | $1.15 | Shop at ECS Tuning | ||||
| 04 | Hose clamp | L=47-54MM | 1 | 07129952121 | $1.42 | Shop at ECS Tuning | ||||
| 05 | Pipe | 1 | 09/1996 | 11532246689 | $35.83 | Shop at ECS Tuning | ||||
| 06 | O-ring | 19,0X2,75MM | 1 | 11537785518 | $0.61 | Shop at ECS Tuning | ||||
| 07 | Hex bolt with washer | M6X18-U1 | 1 | 07119905399 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M6X50 8.8 ZNS3 | 1 | 09/1996 | 07119902993 | $0.59 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Washer | A6,4-200HV-ZNS3 | 1 | 09/1996 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 09 | Water hose | 1 | 11532245421 | Shop at ECS Tuning | ||||||
| 10 | Hose f engine inlet and water valve | 1 | 64218368152 | Shop at ECS Tuning | ||||||
| 11 | Hose f radiator and engine return | 1 | 01/1996 | 11532246733 | +core | Shop at ECS Tuning | ||||
| 12 | Hose clamp | L28-33 | 1 | 07129952113 | $0.96 | Shop at ECS Tuning | ||||
| 13 | Hose clamp | L16-30 | 4 | 64218367179 | $1.07 | Shop at ECS Tuning | ||||
| 14 | Hose clamp | L32-38 | 1 | 07129952115 | $1.27 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
